20mil LLDPE Geomembrane

20mil LLDPE Geomembrane

In the field of environmental engineering and civil construction, geomembranes play an essential role in lining and containment systems. Among various types of geomembranes, the 20mil LLDPE (Linear Low-Density Polyethylene) Geomembrane is a popular choice for projects requiring a balance between flexibility, performance, and cost-efficiency. Its combination of mechanical strength, chemical resistance, and installation convenience makes it suitable for a wide range of applications, including landfill liners, wastewater ponds, mining operations, and agricultural irrigation.

What is a 20mil LLDPE Geomembrane?

A 20mil LLDPE Geomembrane is a geomembrane sheet made from linear low-density polyethylene resin, with a thickness of approximately 0.5mm (20 mils = 0.020 inches = ~0.5mm). Compared to high-density polyethylene (HDPE), LLDPE offers superior flexibility and elongation properties, while still maintaining excellent chemical and environmental resistance. The 20mil version provides a lighter and more cost-effective solution for applications where ultra-thick liners are not required but durability is still critical.

Key Advantages of 20mil LLDPE Geomembrane

1. High Flexibility and Elongation

One of the most significant advantages of LLDPE geomembranes is their exceptional flexibility. Unlike stiffer materials such as HDPE, LLDPE can stretch and conform more easily to subgrade irregularities, slopes, and contours. This characteristic makes 20mil LLDPE geomembrane an ideal choice for lining projects on uneven or unstable surfaces. The enhanced elongation reduces the risk of stress cracking and extends the membrane’s service life.

2. Outstanding Puncture and Tear Resistance

Despite its relatively low thickness, the 20mil LLDPE geomembrane exhibits excellent puncture and tear resistance. Its ductile properties allow it to absorb impacts from sharp rocks, construction debris, or other aggressive materials without breaking or tearing. This makes it reliable for critical containment functions in solid waste landfills, mining tailings storage, and wastewater treatment lagoons.

3. Chemical and UV Stability

LLDPE geomembranes are formulated to resist a wide variety of chemicals, including acids, alkalis, and hydrocarbons. This chemical resistance is essential for applications involving industrial waste, mining leachates, and agricultural effluents. Furthermore, 20mil LLDPE geomembranes are stabilized against ultraviolet (UV) exposure, allowing them to maintain performance even when exposed to sunlight over extended periods.

4. Ease of Installation

20mil LLDPE geomembranes are lighter and more manageable than thicker or stiffer liners. Their flexible nature simplifies the handling, cutting, and welding processes during installation. This translates to lower labor costs and shorter construction timelines. The geomembrane is compatible with various seaming methods, including hot wedge and extrusion welding, ensuring strong and reliable joints between sheets.

5. Cost-Efficient for Moderate Containment Needs

In many projects, using thicker liners such as 60mil or 80mil may not be necessary. A 20mil LLDPE geomembrane provides sufficient protection and barrier performance for moderate-risk containment applications, at a lower cost. It is an optimal solution when budget constraints are a concern, but quality and reliability must not be compromised.

6. Environmentally Safe and Standards-Compliant

High-quality 20mil LLDPE geomembranes are produced from 100% virgin LLDPE resin, free from recycled or hazardous materials. They comply with international manufacturing and testing standards such as GRI-GM17 or ASTM D5885. This ensures that they are safe for use in environmentally sensitive applications, such as potable water reservoirs and aquaculture ponds.

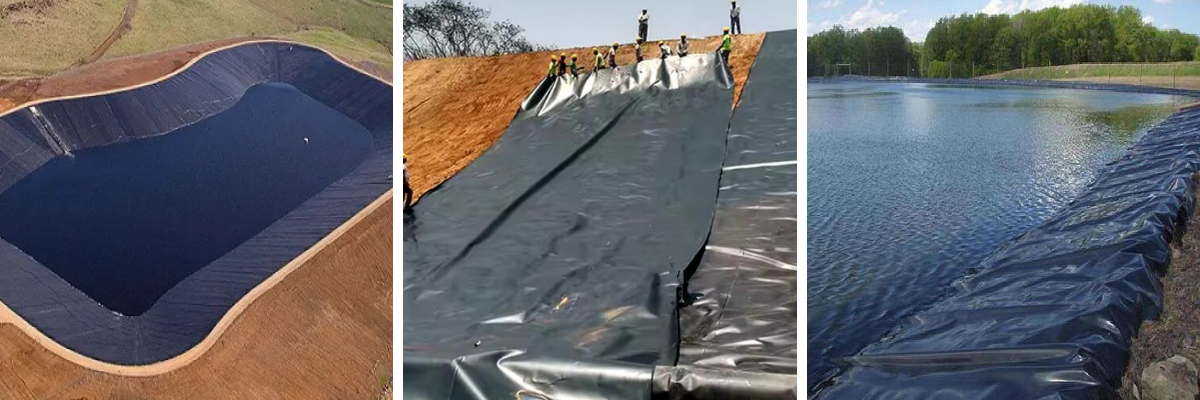

Applications of 20mil LLDPE Geomembrane

Thanks to its versatility, the 20mil LLDPE geomembrane can be used in a variety of sectors:

1.Landfills and Solid Waste Containment: Acts as a base liner or cap barrier to prevent leachate from contaminating groundwater.

2.Mining Industry: Used for tailings ponds, heap leach pads, and process water containment.

3.Wastewater Treatment Plants: Lines aeration lagoons, sludge drying beds, and equalization basins.

4.Agricultural Irrigation: Applied in farm ponds, canals, and water storage tanks to reduce seepage and water loss.

5.Aquaculture and Fisheries: Forms durable liners for fish ponds, shrimp farms, and hatcheries.

6.Secondary Containment Systems: Deployed around chemical storage tanks and fuel facilities to contain spills or leaks.

Why Choose 20mil LLDPE Geomembrane from Haoyang?

As a professional geomembrane supplier and direct factory in China, Haoyang Environmental Co., Ltd. specializes in manufacturing high-performance LLDPE and HDPE geomembranes for domestic and international markets. We provide:

1.Guaranteed Material Quality: All products are made from virgin polyethylene resin with strict quality control.

2.Custom Specifications: Available in various widths and roll lengths to suit different project needs.

3.Competitive Pricing: Direct factory pricing ensures cost efficiency for bulk and long-term orders.

4.Engineering Support: Professional technical guidance for selection, design, and installation.

The 20mil LLDPE Geomembrane is a practical and effective solution for a wide range of containment and lining applications. With its excellent flexibility, puncture resistance, chemical stability, and ease of use, it strikes the right balance between performance and affordability. Whether you're managing an industrial site, an agricultural water system, or an environmental protection project, choosing the right geomembrane is critical. For projects requiring a reliable yet economical barrier, the 20mil LLDPE geomembrane is a proven choice—and with a trusted supplier like Haoyang, quality and service are guaranteed.
