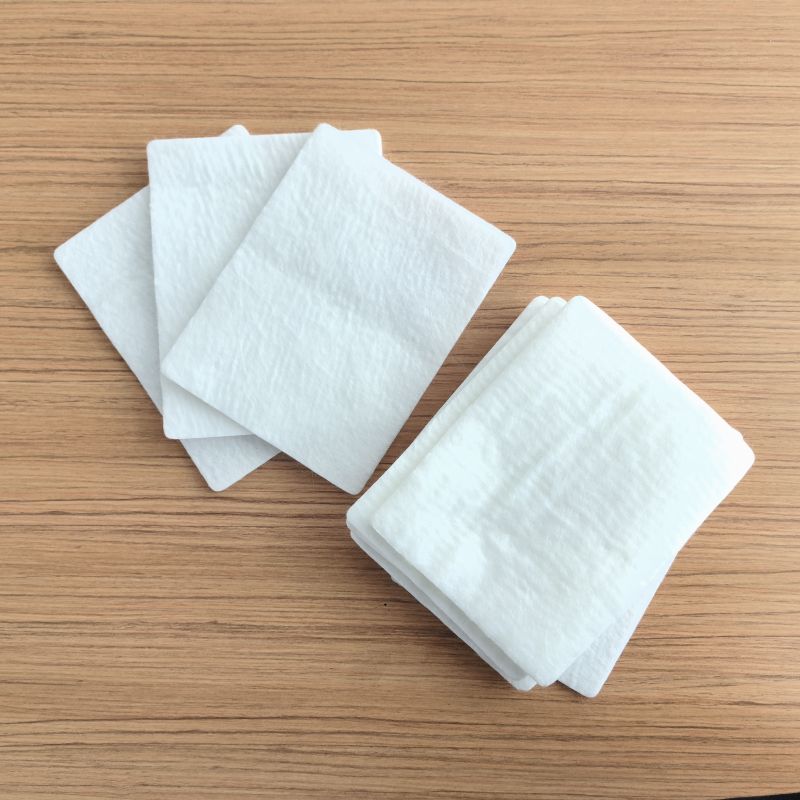

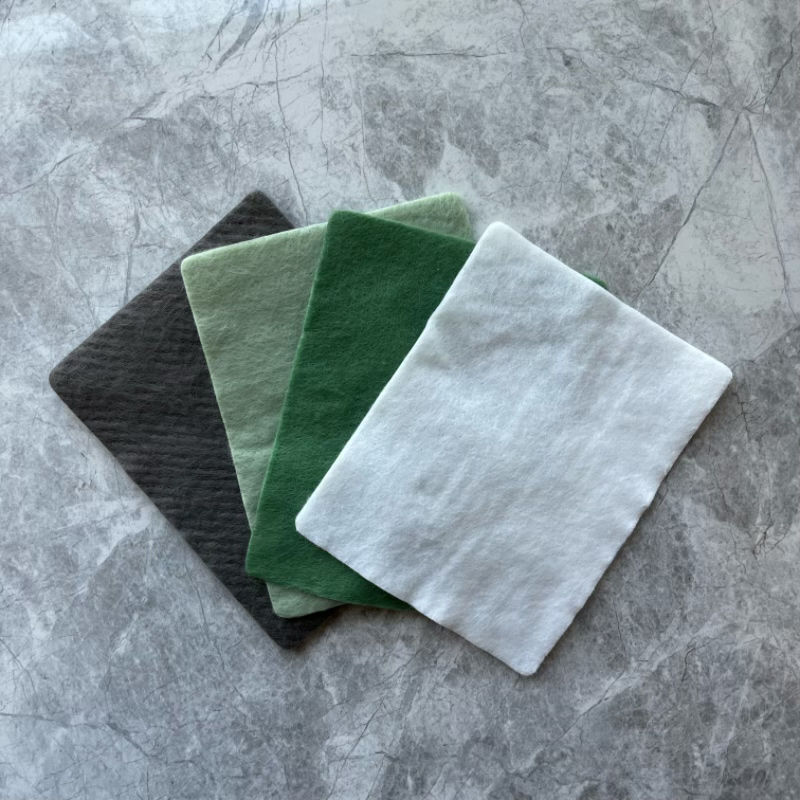

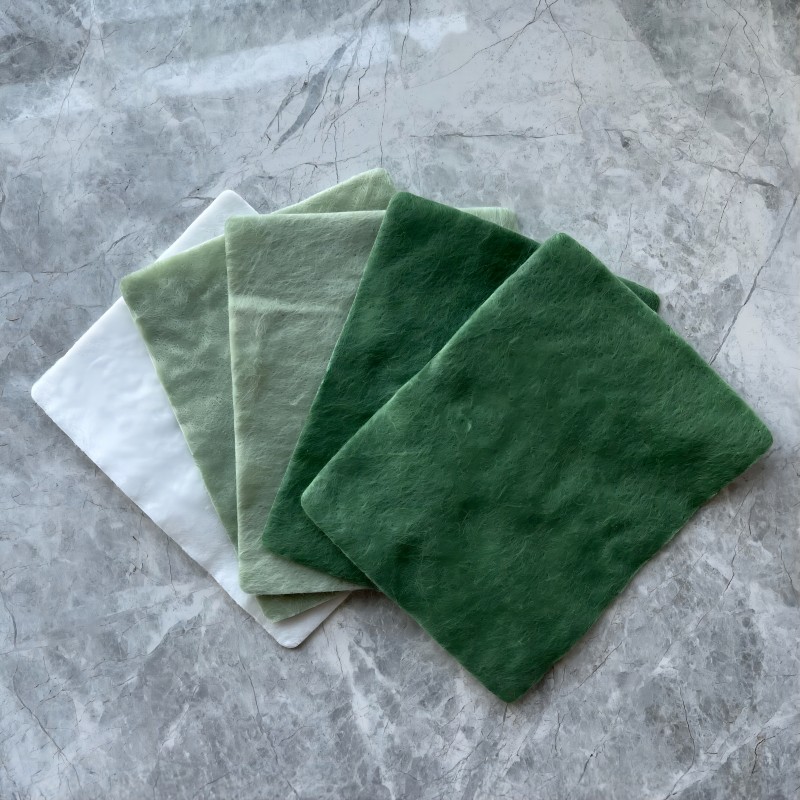

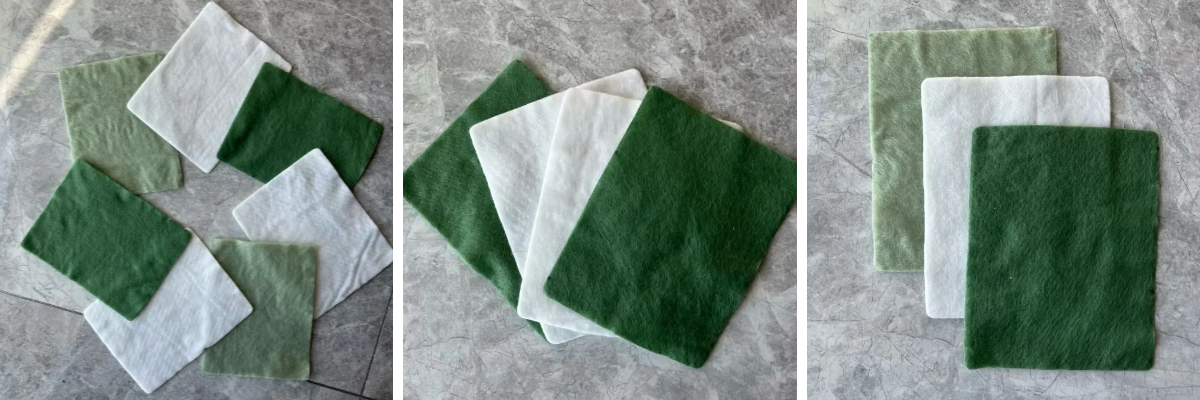

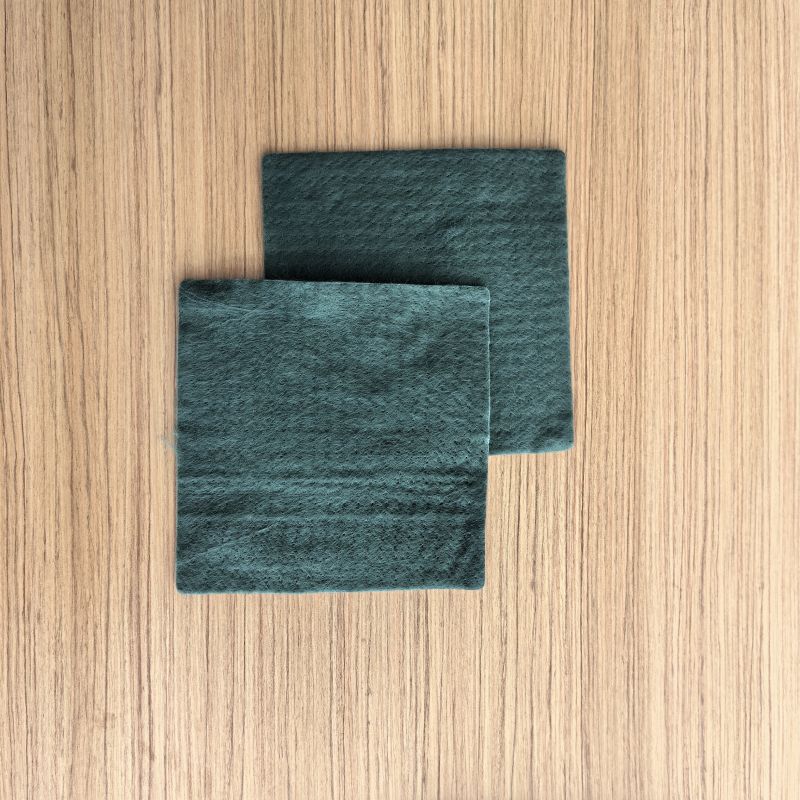

Non Woven Geotextile Fabric
High Strength & Durability: Needle-punched for puncture resistance (roadbeds, slopes).
Superior Filtration & Drainage: Porous structure prevents soil erosion (landfills, walls).
Chemical & UV Resistant: UV-stabilized, anti-corrosion (mining, coastal).
Flexible & Crack-Resistant: Adapts to ground movement (embankments, rail tracks).
Long Lifespan (>50 yrs): Resists aging, extreme temps (–40°C to 120°C).
Product Introduction
Non Woven Geotextile Fabric is produced through the polyester method, involving the direct spinning and needling consolidation of polyester fibers. It is created by forming a three-dimensional structure through the arrangement of polyester long filaments into a net and consolidating them. In addition to exhibiting excellent mechanical properties, it also demonstrates good vertical and horizontal drainage performance, superior extensibility, and high resistance to biological organisms, acids, alkalis, aging, and other chemical stability factors. Simultaneously, it features a wide range of pore sizes, intricate pore distribution, excellent permeability, and filtration performance. Long filament geotextile fabric has found widespread applications in the field of infrastructure construction.
Product Specifications
Properties | Test Method | GM13 Test Value | Testing Frequency | ||||||
Thickness (min. ave.) | 0.75mm | 1mm | 1.25mm | 1.5mm | 2.0mm | 2.5mm | 3.0mm | (minimum) | |
nom. | nom. | nom. | nom. | nom. | nom. | nom. | Per roll | ||
lowest individual of 10 values | D5199 | -10% | -10% | -10% | -10% | -10% | -10% | -10% | |
Formulated Density mg/l (min.) | D 1505/ D 792 | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 0.940 g/cc | 90,000kg |
Tensile Properties (1) (min. ave.) | D 6693 Type IV | 9,000kg | |||||||
. yield strength | 11kn/m | 15kn/m | 18kn/m | 22kn/m | 29kn/m | 37kn/m | 44kn/m | ||
. break strength | 20kn/m | 27kn/m | 33kn/m | 40kn/m | 53kn/m | 67kn/m | 80kn/m | ||
. yield elongation | 12% | 12% | 12% | 12% | 12% | 12% | 12% | ||
. break elongation | 700% | 700% | 700% | 700% | 700% | 700% | 700% | ||
Tear Resistance (min. ave.) | D 1004 | 93N | 125N | 156N | 187N | 249N | 311N | 374N | 20,000 kg |
Puncture Resistance (min. ave.) | D 4833 | 240N | 320N | 400N | 480N | 640N | 800N | 960N | 20,000 kg |
Stress Crack Resistance (2) | D5397 | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | 500 hr. | per GRI-GM10 |
(App.) | |||||||||
Carbon Black Content (range) | D 4218 (3) | 2.0-3.0% | 9,000kg | ||||||
Oxidative Induction Time (OIT) (min. ave.) (5) (a) Standard OIT | D 3895 D 5885 | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 100 min. | 90,000kg |
— or —(b) High Pressure OIT | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | 400 min. | ||
Oven Aging at 85°C (5), (6) | D 5721 D 3895 D 5885 | per each formulation | |||||||
(a) Standard OIT (min. ave.) - % retained after 90 days — or — | 55% | 55% | 55% | 55% | 55% | 55% | 55% | ||
(b) High Pressure OIT (min. ave.) - % retained after 90 days | 80% | 80% | 80% | 80% | 80% | 80% | 80% | ||
(a) Standard OIT (min. ave.) | D 3895 D 5885 | 50% | 50% | 50% | 50% | 50% | 50% | 50% | per each formulation |
— or — | |||||||||
(b) High Pressure OIT (min. ave.) - % retained after 1600 hrs (9) | |||||||||
Product Features
1), High-Temperature Resistance: Withstands temperatures up to 230°C, maintaining structural integrity and original physical properties even under high temperatures.
2), Permeability and Planar Drainage: The geotextile fabric, being thick and needle-punched, demonstrates excellent planar drainage and vertical permeability, maintaining these properties even after many years.
3), Creep Resistance: Long filament geotextile fabric has superior resistance to creep compared to other geotextiles, ensuring long-term effectiveness. It withstands erosion by common chemicals in the soil and is resistant to corrosive substances such as gasoline and diesel.
4), Elongation: The fabric has good elongation at a certain stress level, allowing it to adapt to irregular surfaces with uneven terrain.
Application Scenarios
1). Road and Railway Construction
- Subgrade Stabilization:
- Separates soil layers to prevent intermixing and reinforces weak subgrades.
- Distributes loads to reduce rutting and cracking in pavements.
- Drainage Layers:
- Filters water while preventing soil erosion in road embankments and railway tracks.
- Slope Protection:
- Stabilizes slopes and prevents landslides by combining with vegetation or retaining structures.
2). Erosion Control
- Riverbanks and Coastlines:
- Acts as a protective layer under riprap or gabions to filter water and retain soil.
- Retaining Walls:
- Provides drainage behind walls to reduce hydrostatic pressure and prevent soil washout.
3). Landfill Engineering
- Leachate Management:
- Filters leachate in drainage systems while protecting geomembranes from punctures.
- Capping Systems:
- Used in landfill covers to control gas emissions and promote vegetation growth.
4). Hydraulic and Coastal Engineering
- Dam and Canal Liners:
- Prevents seepage and erosion while allowing controlled water flow.
- Revêtments and Breakwaters:
- Reinforces structures against wave action and tidal forces.
5). Agriculture and Environmental Projects
- Drainage Systems:
- Installed in agricultural fields to enhance subsurface drainage and prevent waterlogging.
- Pond and Reservoir Liners:
- Separates soil from liners while filtering sediment in irrigation or aquaculture ponds.
- Green Infrastructure:
- Used in green roofs, bioswales, and rain gardens for filtration and root protection.
6). Mining and Industrial Applications
-Tailings Storage:
- Stabilizes mining waste ponds and filters contaminants.
- Heap Leach Pads:
- Separates and filters chemical solutions in metal extraction processes.
Why choose Haoyang Geomembrane？
Why choose Haoyang Geomembrane？
1. Imported Raw Materials
High-quality raw materials sourced from **Saudi Arabia** ensure superior product performance and consistency from the source.
2. World-Leading 10m Blown Film Production Line
Equipped with advanced five-layer co-extrusion technology, capable of producing both smooth and textured geomembranes with a maximum width of 10 meters.
3. Direct-from-Factory Production
As a manufacturer, we guarantee premium quality while offering the most competitive prices by eliminating middlemen.

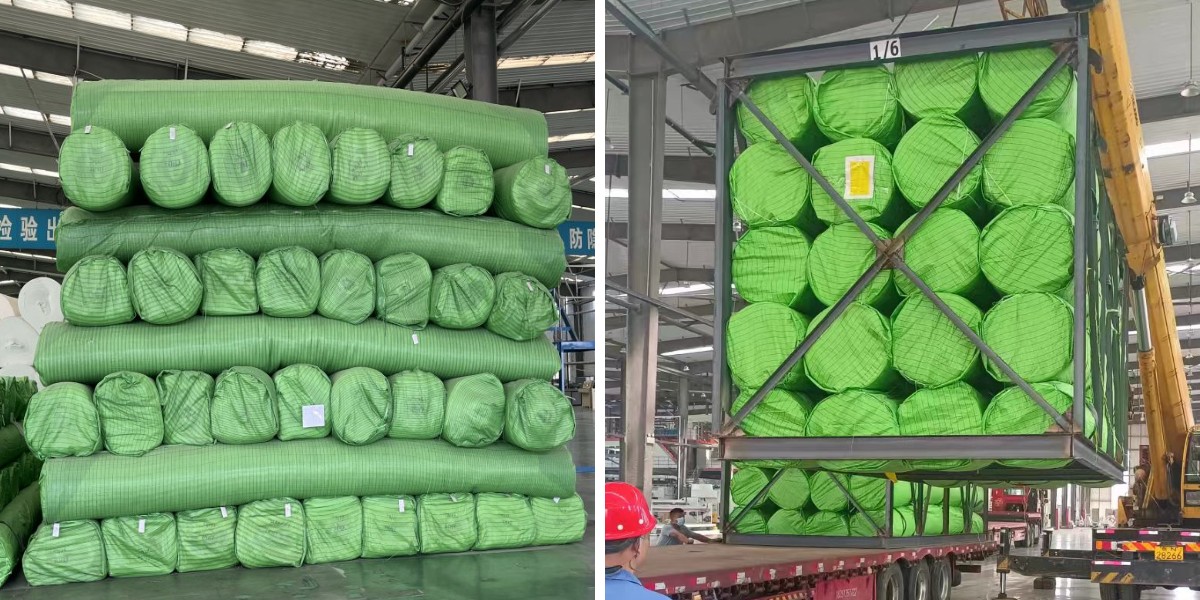

4. Fast Delivery
High daily output of 70 tons ensures timely delivery to meet urgent project timelines.
5. One-Stop Solution
Beyond manufacturing and sales, we provide **professional project construction teams** to deliver end-to-end solutions for seamless project execution.
