10m Wide HDPE Geomembrane for Large Projects

1.Wider Coverage – Up to 10m width reduces welding and speeds up installation.

2.Superior Waterproofing – Excellent anti-seepage performance for large projects.

3.High Strength – Strong tensile resistance ensures durability under heavy loads.

4.UV and Chemical Resistant – Withstands harsh environments for long service life.

5.Eco-Friendly Material – Made from 100% virgin HDPE, safe for agriculture and aquaculture.

6.Cost-Effective Solution – Lower installation and maintenance costs for big projects.

Contact Now E-Mail Telephone WhatsApp

Product Details

In large-scale civil engineering, agriculture, aquaculture, and environmental protection projects, reliable waterproofing and containment solutions are essential. HDPE (High-Density Polyethylene) geomembrane has become the preferred choice for engineers and project managers around the world. Among its many forms, the 10m wide HDPE geomembrane stands out as the most efficient and cost-effective solution for large projects, offering excellent performance, faster installation, and long-lasting durability.

What is a 10m Wide HDPE Geomembrane?

HDPE geomembrane is a synthetic liner made from 100% virgin high-density polyethylene resin. It is designed to create an impermeable barrier that prevents water loss, seepage, and contamination. The 10m wide version is specially manufactured to cover large areas with fewer welds, reducing installation time and enhancing overall project efficiency.

10m Wide HDPE Geomembrane for Large Projects

Key Advantages of 10m Wide HDPE Geomembrane

Wider Coverage
With a width of up to 10 meters, this geomembrane requires fewer joints and welds during installation. This not only saves labor costs but also minimizes the risk of leakage at welded seams.
Superior Waterproofing
The geomembrane offers exceptional impermeability, making it ideal for reservoirs, ponds, canals, and landfill projects. It ensures reliable water storage and effective seepage control.
High Strength and Durability
Manufactured from 100% virgin HDPE, the liner provides excellent tensile strength, impact resistance, and puncture resistance. It performs well under heavy loads and extreme conditions.
UV and Chemical Resistance
10m wide HDPE geomembrane is engineered to withstand prolonged UV exposure, temperature fluctuations, and chemical contact. This guarantees long service life and reduced maintenance costs.
Eco-Friendly and Safe
Non-toxic and environmentally friendly, the liner is safe for agriculture, aquaculture, and water conservation projects. It does not release harmful substances, making it suitable for fish ponds, shrimp farms, and irrigation reservoirs.
Cost-Effective Solution
By reducing installation time, minimizing material wastage, and extending service life, 10m wide HDPE geomembrane provides excellent long-term cost savings for large-scale projects.

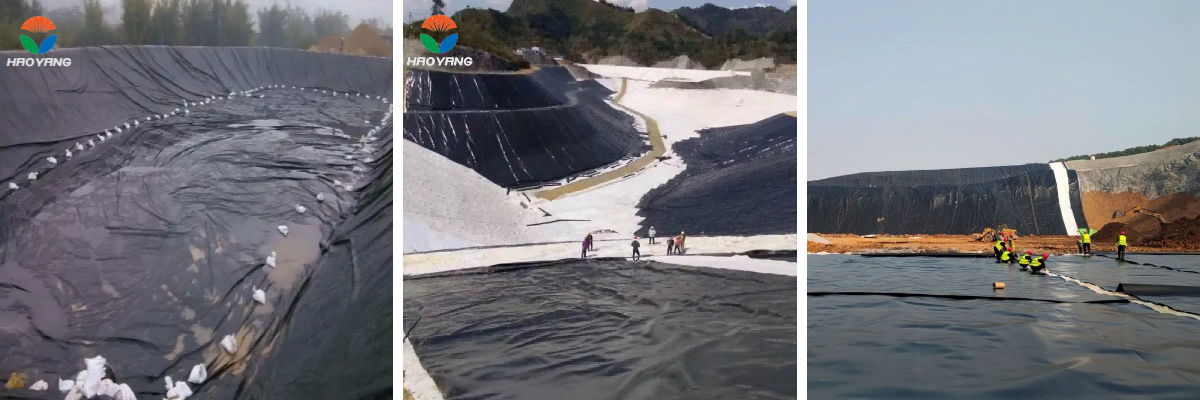

Applications of 10m Wide HDPE Geomembrane

Reservoirs and Dams: Provides reliable waterproofing for large water storage facilities.
Aquaculture Projects: Creates a safe and non-toxic environment for fish and shrimp farming.
Agriculture: Ensures secure irrigation reservoirs, canals, and farm ponds.
Landfills and Waste Management: Prevents leachate leakage and protects groundwater resources.
Mining Projects: Used for tailings containment and heap leach pads.
Industrial Applications: Effective in wastewater treatment and effluent containment.

10m Wide HDPE Geomembrane for Large Projects

Why Choose Our 10m Wide HDPE Geomembrane?

As a professional manufacturer and supplier, we produce high-quality HDPE geomembranes using advanced technology and strict quality control standards. Our 10m wide geomembrane is designed to meet the demanding requirements of global projects.

Manufactured with 100% virgin raw materials for maximum performance.
Certified quality with ISO, CE, SGS, and GOST compliance.
Thickness range from 0.5mm to 2.0mm to suit different project needs.
Professional technical support for installation and project guidance.
Global supply capacity with timely delivery to meet international demand.

The Sustainable Choice

Using 10m wide HDPE geomembrane not only improves project efficiency but also supports sustainability. By conserving water, preventing contamination, and reducing maintenance, it helps achieve eco-friendly development goals. Its long lifespan and recyclability make it an environmentally responsible choice.

No.	Item	Unit	Index
1	Thickness	mm	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
2	Density	g/cm3	≧0.940
3	Tensile yield strength	N/mm	≧4	≧7	≧10	≧13	≧16	≧20	≧26	≧33	≧40
4	Tensile breaking strength	N/mm	≧6	≧10	≧15	≧20	≧25	≧30	≧40	≧50	≧60
5	Yield elongation	%	-	-	-	≧11
6	Break Elongation	%	≧600
7	Right-angle Tearing strength	N	≧34	≧56	≧84	≧115	≧140	≧170	≧225	≧280	≧340
8	Puncture strength	N	≧72	≧120	≧180	≧240	≧300	≧360	≧480	≧600	≧720
9	Carbon black content	%	2.0~3.0
10	Dispersion of carbon black	-	There is not more than one level 3 in 10 data, and level 4 and level 5 are not allowed to exist.
11	Oxidation induction time	min	≧60
12	Low temperature impact embrittlement properties	-	Pass
13	Water vapor permeability coefficient	g.cm/ (cm2.s.Pa)	≦1.0*10-13
14	Dimensional stability	%	±2.0
Note	Technical performance indicators for thickness specifications not listed in the table are required to be performed by interpolation.

For large-scale projects that demand efficiency, durability, and sustainability, the 10m wide HDPE geomembrane is the ultimate solution. Its superior waterproofing, wide coverage, and long-lasting performance make it the preferred choice for engineers, farmers, and project managers worldwide. By choosing our high-quality HDPE geomembrane, you ensure secure water storage, reduced installation costs, and sustainable project outcomes.

Contact us today to learn more about our 10m Wide HDPE Geomembrane and request a customized solution for your project.
