0.5mm HDPE Geomembrane

1.Lightweight & Flexible: 0.5mm thickness offers excellent flexibility, making it easy to transport, cut, and install on-site.

2.Effective Waterproofing: Provides a strong impermeable barrier, suitable for preventing liquid leakage in various containment projects.

3.UV & Chemical Resistance: Withstands prolonged exposure to sunlight and resists corrosion from acids, alkalis, and other chemicals.

4.Eco-Friendly Material: Made from 100% virgin HDPE, non-toxic and safe for aquaculture, agriculture, and environmental applications.

5.Secure Seam Welding: Supports high-quality thermal welding for tight, leak-proof joints that enhance overall project reliability.

Contact Now E-Mail Telephone WhatsApp

Product Details

Why 0.5mm HDPE Geomembrane Is the Smart Choice for Global Waterproofing Projects

In today’s infrastructure, environmental, and agricultural engineering sectors, efficient waterproofing is essential—not only for operational success but also for regulatory compliance and long-term sustainability. Among the many available liner materials, the 0.5mm HDPE geomembrane has gained widespread popularity worldwide for offering a cost-effective yet high-performance solution. From aquaculture farms in Southeast Asia to mining projects in South America, this geo membrane sheet is redefining modern containment strategies.

What Is a 0.5mm HDPE Geomembrane?

The 0.5mm HDPE geomembrana is a thin, flexible sheet made from high density polyethylene (HDPE), designed to prevent the migration of fluids or gases in engineered projects. Despite its slim profile, it delivers exceptional impermeability, tensile strength, and chemical resistance. The 0.5mm thickness makes it especially suitable for applications where weight, budget, or installation constraints are a concern.

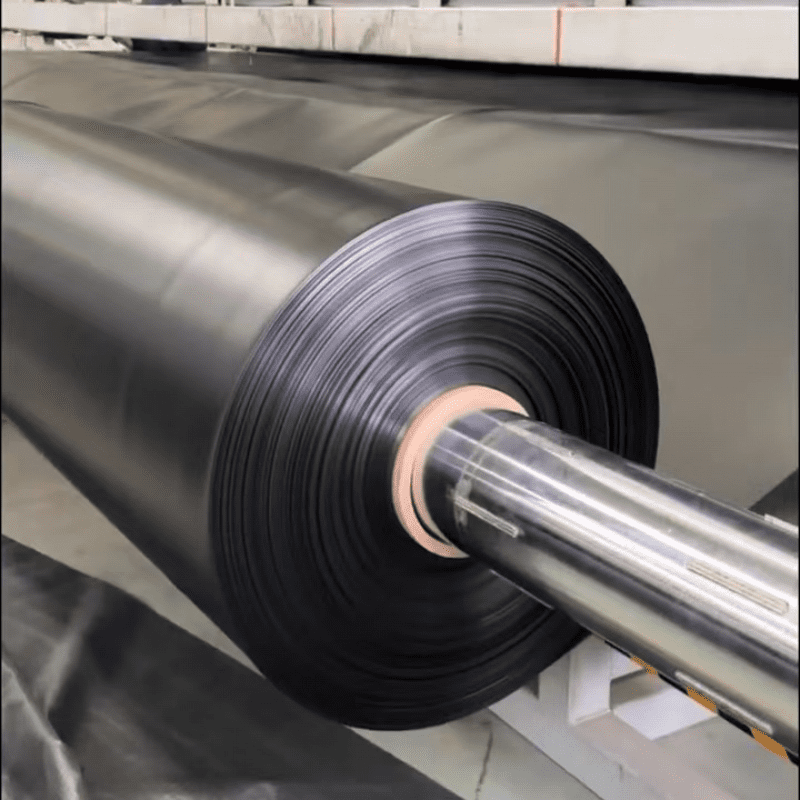

0.5mm HDPE Geomembrane

Why Choose 0.5mm Thickness?

While thicker geomembranes (1.0mm or more) are often used for heavy-duty industrial applications, the 0.5mm variant provides unique advantages:

Lightweight for Easy Handling: Ideal for manual or limited-equipment installation in remote or small-scale projects.
Faster Deployment: Easier and quicker to lay, weld, and backfill, reducing labor and equipment costs.
Cost Efficiency: Offers excellent performance at a significantly lower material and transport cost.
Adaptability: Works well in tight corners, slopes, and irregular terrain, where rigid or thicker liners may be difficult to apply.

Core Performance Features

Outstanding Impermeability
The high density polyethylene geomembrane forms an effective barrier against water, leachate, and chemical fluids, ensuring site safety and environmental protection.
Excellent Chemical and UV Resistance
Engineered for outdoor exposure, the membrane withstands acids, alkalis, solvents, and prolonged UV radiation—ideal for mining, agriculture, and industrial use.
Superior Seam Strength
Compatible with common welding techniques such as hot wedge and extrusion welding, ensuring seamless joins and leak-proof results across the entire surface.
Environmental Safety
Made from 100% virgin HDPE resin, our hdpe geomembrana is non-toxic, safe for aquaculture, and compliant with global environmental standards.
Customizable Options
Available in smooth or textured surfaces, black or other colors, and in rolls of varying widths and lengths to suit specific project needs.

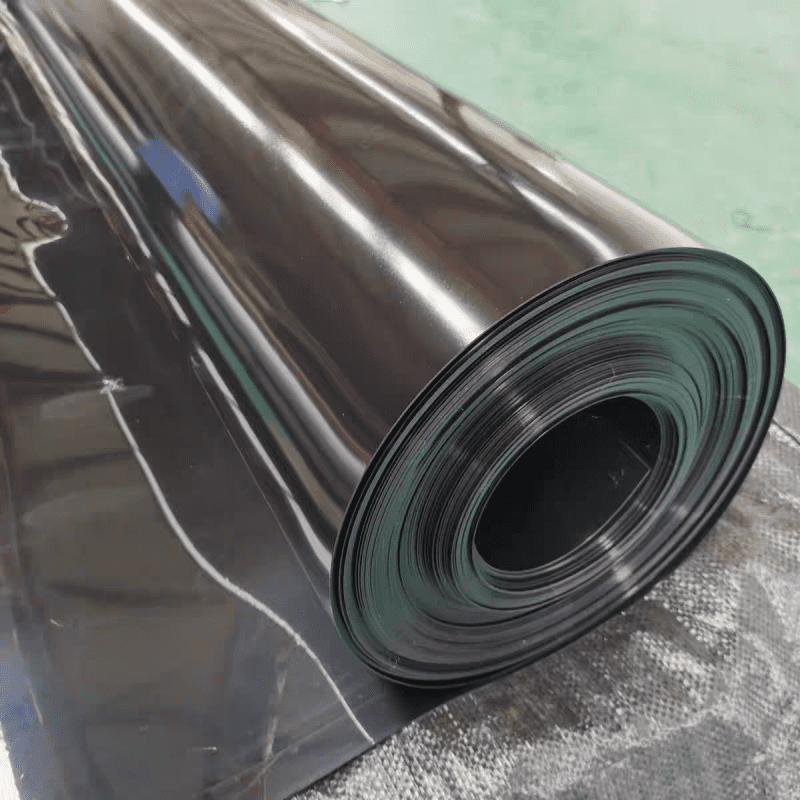

0.5mm HDPE Geomembrane

Real-World Applications Across Industries

The versatility of the 0.5mm geo membrane sheet makes it suitable for a wide range of applications:

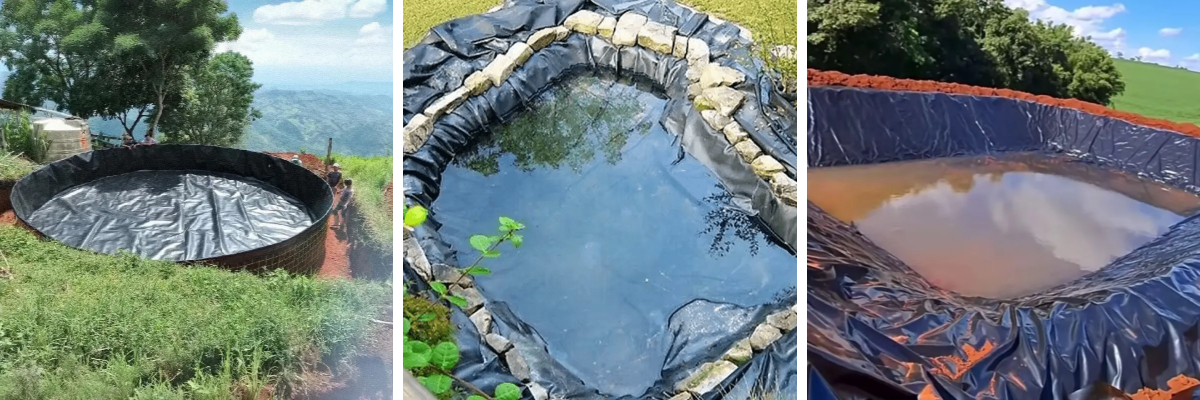

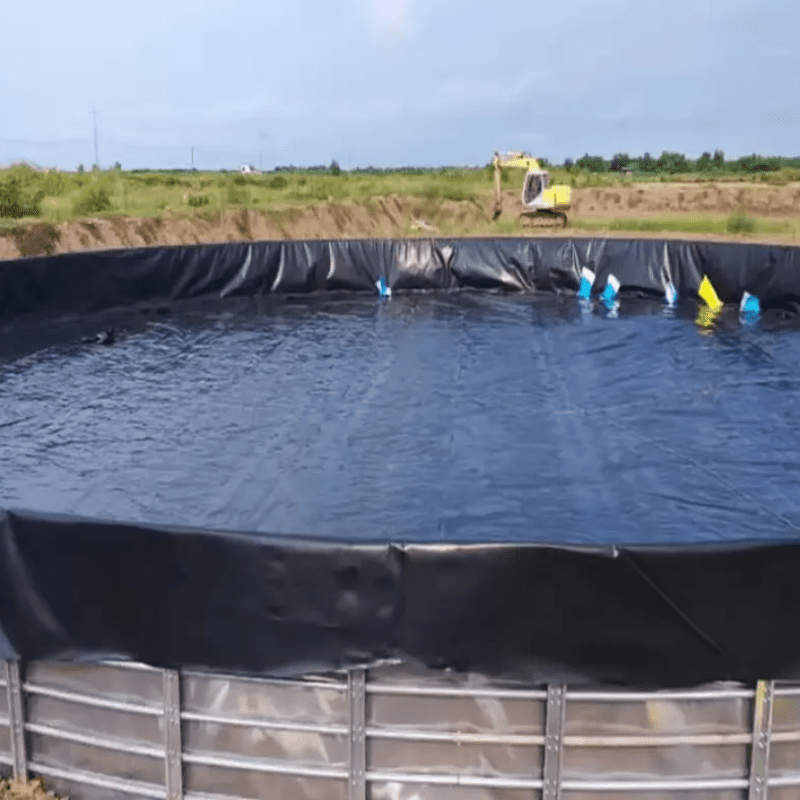

Aquaculture Ponds: Prevents seepage in shrimp, fish, or crab ponds, and improves water retention and quality control.
Agricultural Water Storage: Lining for reservoirs, canals, and irrigation pits to minimize water loss and soil erosion.

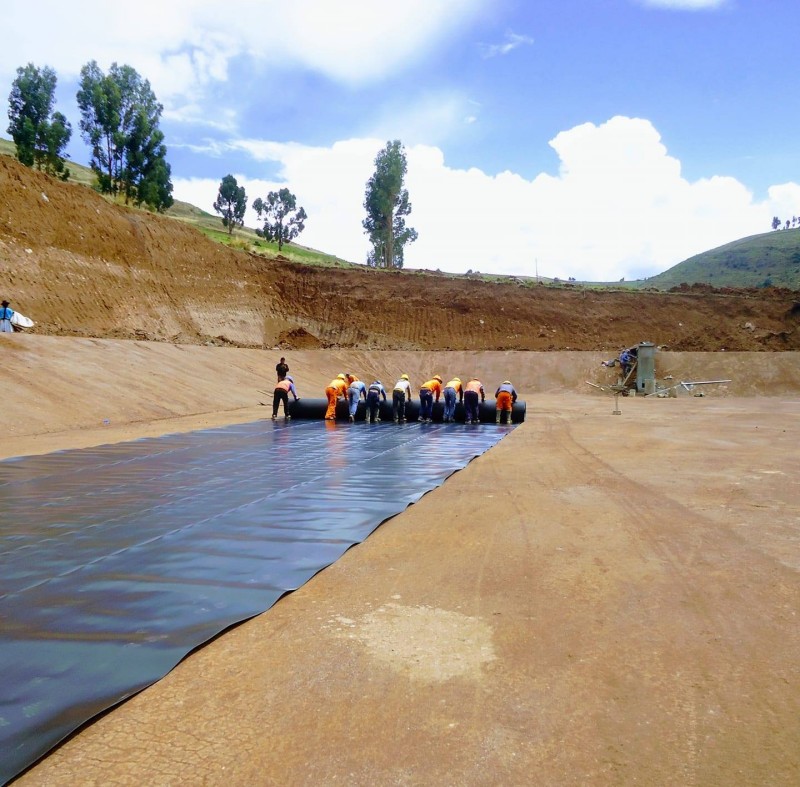

Mining Operations: Used in tailings ponds, heap leach pads, and process water containment due to its high chemical resistance.
Waste Management: Acts as a base liner or cap in landfills to prevent leachate contamination of surrounding soil and groundwater.
Construction Waterproofing: Used beneath roads, tunnels, and building foundations for moisture control and structural durability.

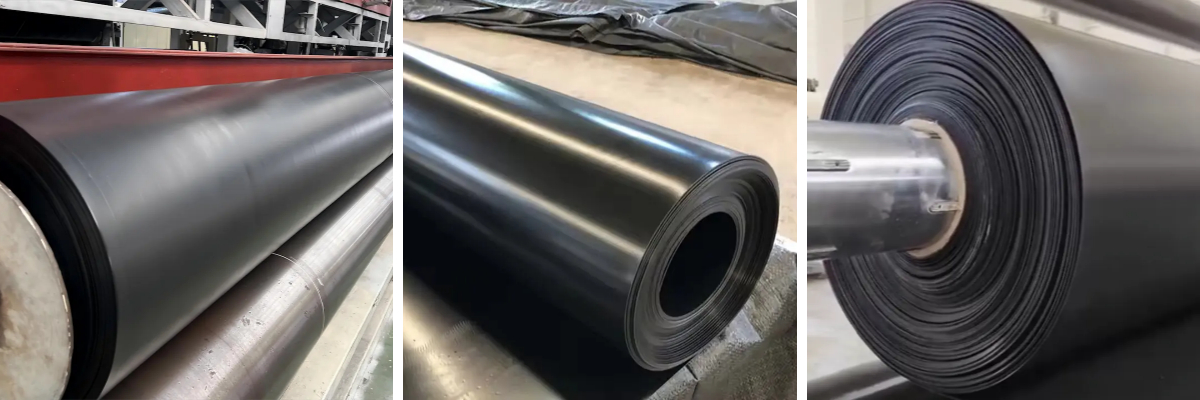

0.5mm HDPE Geomembrane

Why Global Clients Trust Our HDPE Geomembrana

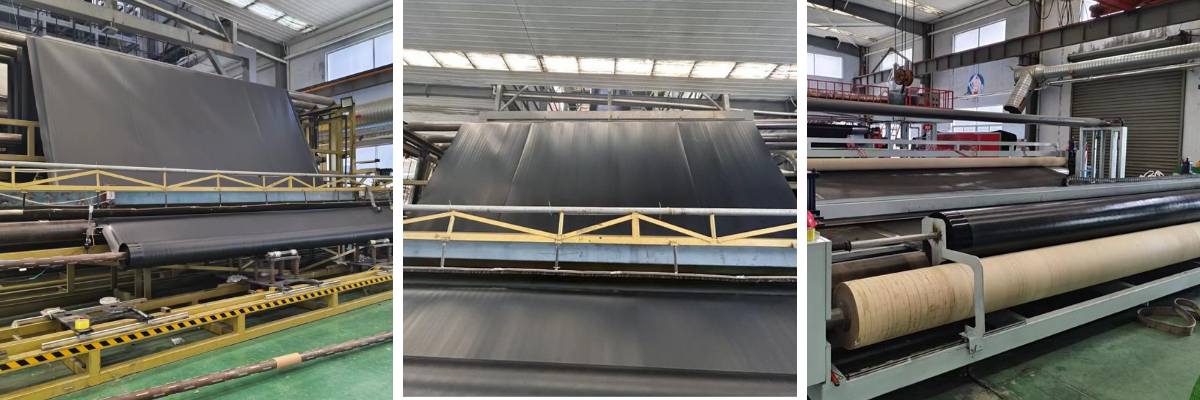

As a direct manufacturing source with years of export experience, we understand the technical demands and logistics of international projects. Our high density polyethylene geomembrane products are manufactured under strict ISO standards, with full quality traceability. We provide:

OEM and private label services
Custom roll sizes and surface finishes
Technical consultation for installation and design
Fast shipping with export documents ready
Competitive factory pricing

No.	Item	Unit	Index
1	Thickness	mm	0.30	0.50	0.75	1.00	1.25	1.50	2.00	2.50	3.00
2	Density	g/cm3	≧0.940
3	Tensile yield strength	N/mm	≧4	≧7	≧10	≧13	≧16	≧20	≧26	≧33	≧40
4	Tensile breaking strength	N/mm	≧6	≧10	≧15	≧20	≧25	≧30	≧40	≧50	≧60
5	Yield elongation	%	-	-	-	≧11
6	Break Elongation	%	≧600
7	Right-angle Tearing strength	N	≧34	≧56	≧84	≧115	≧140	≧170	≧225	≧280	≧340
8	Puncture strength	N	≧72	≧120	≧180	≧240	≧300	≧360	≧480	≧600	≧720
9	Carbon black content	%	2.0~3.0
10	Dispersion of carbon black	-	There is not more than one level 3 in 10 data, and level 4 and level 5 are not allowed to exist.
11	Oxidation induction time	min	≧60
12	Low temperature impact embrittlement properties	-	Pass
13	Water vapor permeability coefficient	g.cm/ (cm2.s.Pa)	≦1.0*10-13
14	Dimensional stability	%	±2.0
Note	Technical performance indicators for thickness specifications not listed in the table are required to be performed by interpolation.

Whether you are a civil engineering contractor in the Middle East, a farm operator in Africa, or an environmental agency in Europe, our 0.5mm hdpe geomembrana is designed to deliver value, reliability, and peace of mind.

Ready to protect your project with a world-class geo membrane sheet?
Contact us now for a free quote, technical datasheet, or sample. We ship worldwide and support bulk orders with professional service.
