Black PVC Geomembrane

Black PVC Geomembrane

In the field of environmental engineering, aquaculture, agriculture, and water containment, Black PVC Geomembrane has established itself as one of the most reliable and versatile lining solutions. Designed to provide superior impermeability, chemical resistance, and long-term durability, black PVC geomembrane is widely used for lining ponds, canals, reservoirs, landfills, and other containment systems.

What is Black PVC Geomembrane?

PVC (Polyvinyl Chloride) geomembrane is a flexible polymer-based sheet used as a waterproof barrier in containment applications. The black version of PVC geomembrane is specifically formulated to enhance UV resistance and durability in outdoor environments. The black color helps absorb sunlight, reducing algae growth and increasing the material's longevity when exposed to weather elements.

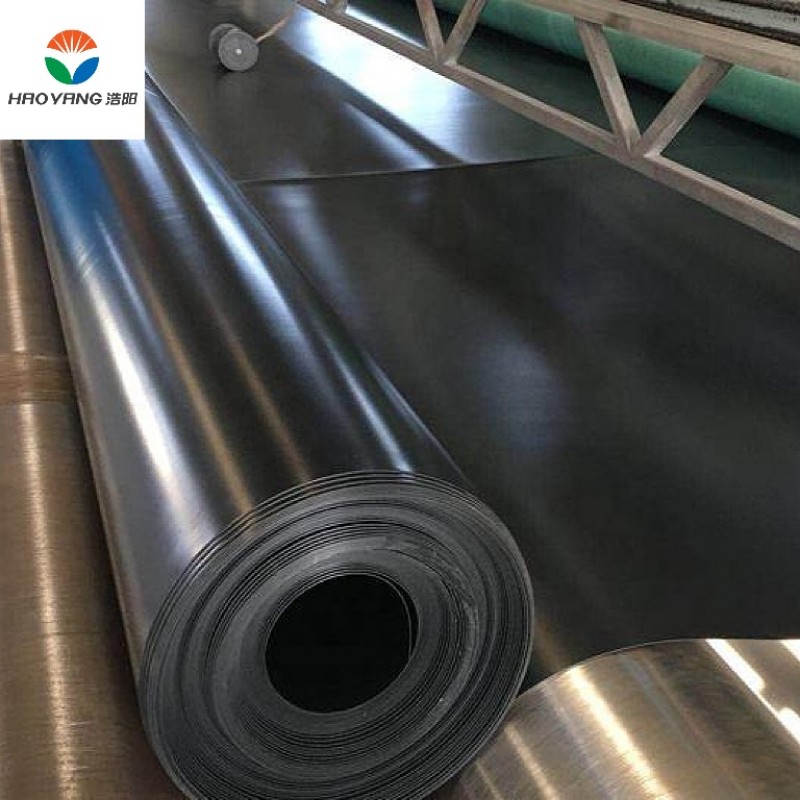

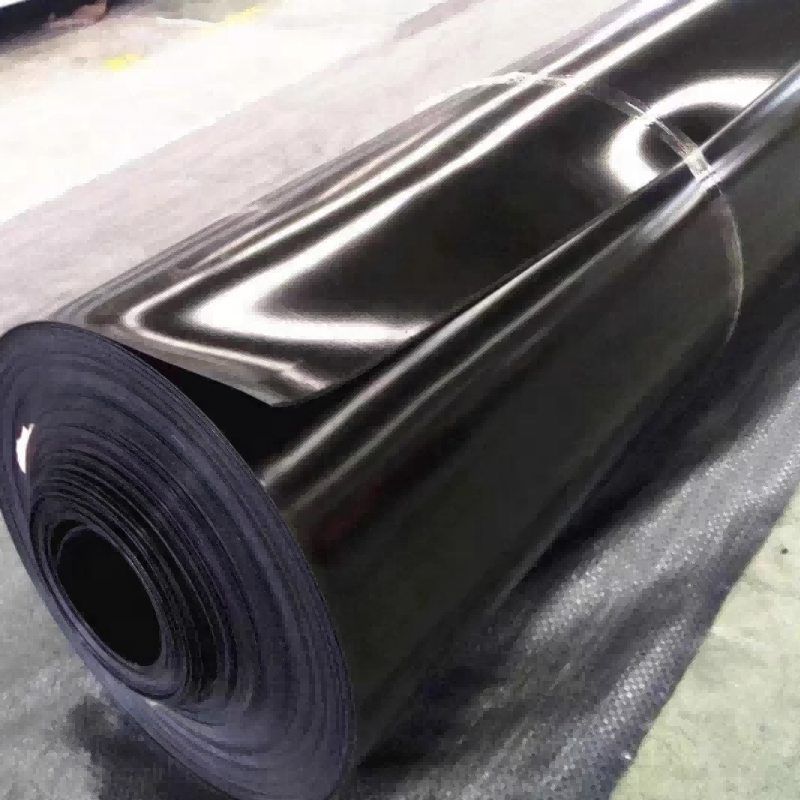

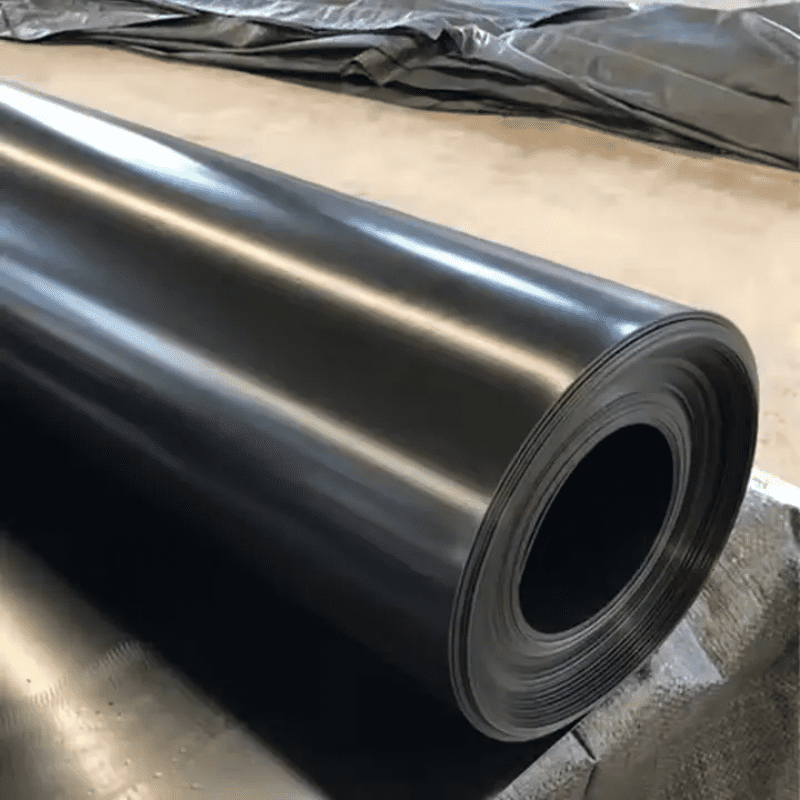

Unlike high-density alternatives such as HDPE, PVC geomembrane is known for its superior flexibility, which makes it suitable for lining uneven and irregular surfaces. The geomembrane is available in a range of thicknesses (typically 0.5 mm to 2.0 mm) and is supplied in rolls for easy handling and installation.

Key Advantages of Black PVC Geomembrane

1. Excellent Waterproofing Performance

One of the most important properties of a geomembrane liner is its ability to block water migration. Black PVC geomembrane offers low permeability, making it an ideal barrier against water seepage. It is especially effective in fish ponds, artificial lakes, and irrigation systems where water retention is critical.

2. High Flexibility and Adaptability

PVC has excellent elongation and flexibility, which allows the membrane to adapt to the contours of rough, sloped, or uneven ground without cracking or tearing. This property minimizes the need for extensive ground preparation and reduces the risk of punctures during installation.

3. UV and Weather Resistance

The black color enhances resistance to ultraviolet radiation. This is particularly important in outdoor applications, where exposure to sunlight and weathering can degrade materials over time. The black PVC geomembrane maintains its structural integrity and performance for years, even under harsh climatic conditions.

4. Non-Toxic and Eco-Friendly

PVC geomembrane made for water containment is free from harmful additives and is safe for aquatic life. This makes it suitable for use in fish and shrimp farming, agricultural water storage, and landscaping ponds where environmental safety is a concern.

5. Easy to Install and Repair

Black PVC geomembrane is lightweight and easy to weld using hot air or solvent-based adhesives. This facilitates quick installation and on-site customization. In the event of damage, repairs are simple and cost-effective, often requiring only patching rather than full replacement.

6. Chemical and Biological Resistance

PVC is resistant to a wide range of chemicals, including acids, alkalis, salts, and organic compounds. This makes the membrane ideal for applications where chemical exposure is likely, such as wastewater treatment ponds or agricultural containment systems.

Common Applications

Thanks to its unique properties, black PVC geomembrane is used in a variety of industries and applications:

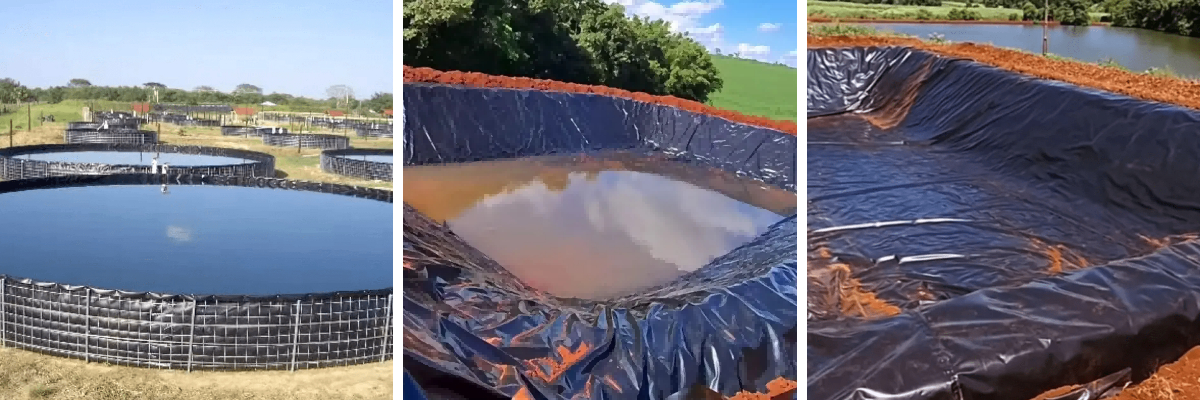

1. Fish and Shrimp Ponds: Provides a stable, safe, and hygienic environment for aquaculture.

2. Irrigation Canals and Reservoirs: Prevents water loss and improves distribution efficiency.

3. Agricultural Water Storage: Used in lined pits or tanks to store rainwater or irrigation water.

4. Decorative Water Features: Ideal for ornamental ponds, fountains, and landscape design.

5. Wastewater Treatment: Used in lined basins to prevent contamination of surrounding soil.

6. Landfills and Solid Waste Containment: Acts as a protective barrier against leachate leakage.

Technical Specifications

Installation Guidelines

Proper installation is crucial to achieving maximum performance from a black PVC geomembrane. Here are the general steps:

1. Site Preparation

1. Clear the surface of sharp rocks, roots, and debris.

2. Smooth and compact the base soil to prevent punctures.

2. Deployment

1. Unroll the membrane carefully over the area.

2. Allow the sheet to conform to the shape of the ground.

3. Seaming

1. Overlap adjacent sheets by at least 10–15 cm.

2. Use hot air welding machines or solvent adhesive to create watertight joints.

4. Anchoring

1. Secure the edges in trenches or with weights to prevent movement.

2. Backfill anchor trenches once the liner is in place.

5. Inspection and Testing

1. Perform seam testing and leak checks before filling the pond or tank.

Economic and Environmental Impact

Using black PVC geomembrane contributes to cost savings and environmental protection. It reduces water loss, minimizes soil erosion, and protects groundwater from contamination. Though the initial investment is higher than traditional methods (like compacted clay), the long-term savings in water usage, maintenance, and crop or aquaculture yield far outweigh the upfront cost.

Additionally, its long service life means less frequent replacements, contributing to lower material waste and reduced environmental impact.

Comparison with Other Geomembranes

PVC strikes a balance between performance, flexibility, and cost-effectiveness, especially for small to medium-sized projects.

Black PVC geomembrane is a versatile, efficient, and durable solution for a wide range of water containment and environmental protection applications. Its excellent waterproofing, UV resistance, flexibility, and ease of installation make it a top choice for both commercial and personal projects. Whether used in aquaculture, agriculture, landscaping, or industrial containment, black PVC geomembrane delivers consistent performance and long-term value.

Investing in quality geomembrane lining is not just a technical decision—it’s a strategic one that ensures resource efficiency, environmental safety, and operational success.
