Geomembrane Fish Pond Liners
1. Watertight Seal for Fish Health: Creates an impermeable barrier to retain optimal water levels, preventing leaks that stress fish and disrupt aquatic ecosystems.
2. Fish-Safe Material: Food-grade, non-toxic geomembrane protects fish from harmful chemicals, ideal for koi ponds, aquaculture, and ornamental fish habitats.
3. Algae & Root Resistance: Smooth surface inhibits algae growth and resists penetration from pond plants, reducing maintenance for clearer, healthier water.
4. pH & Water Quality Stabilizer: Prevents soil contaminants from seeping into water, maintaining balanced pH levels critical for fish survival and growth.
Geomembrane Fish Pond Liners: The Foundation of Thriving Aquatic Ecosystems
Geomembrane Fish Pond Liners are specialized impermeable barriers engineered to create stable, healthy environments for fish and aquatic life. Unlike generic liners, these products are designed specifically for the unique demands of fish ponds, balancing water retention, safety, and ecosystem support. Whether for backyard koi ponds, commercial aquaculture facilities, or ornamental water gardens, they serve as the invisible backbone that keeps aquatic habitats thriving.
1. Fish-Centric Design Features
(1) Non-Toxic Material Composition

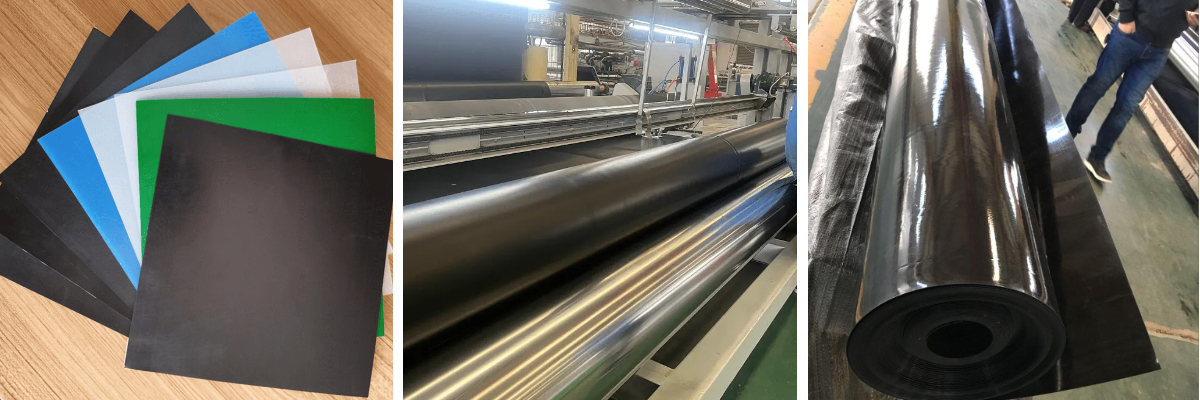

Crafted from food-grade polyethylene (PE) or ethylene propylene diene monomer (EPDM), these liners are 100% free of harmful chemicals, heavy metals, or plasticizers. This ensures no leaching of toxins into the water, protecting fish from stress, disease, or stunted growth – critical for sensitive species like koi, goldfish, or trout.
(2) Smooth, Algae-Resistant Surface
The liners’ ultra-smooth texture minimizes algae adhesion, reducing the need for harsh algaecides that can harm fish. Unlike rough concrete or clay ponds, their non-porous surface prevents organic matter buildup, keeping water clearer and reducing maintenance workload.
(3) Flexibility for Natural Shapes
Designed to conform to irregular pond contours, these liners accommodate the curves, depths, and shelves that fish need for shelter and breeding. Whether creating shallow feeding zones or deep hibernation areas, the material stretches without tearing, mimicking natural aquatic environments.
Property | PE Liner (Standard) | EPDM Liner (Premium) | Testing Standard |
Thickness | 0.5mm – 1.5mm | 0.75mm – 2.0mm | ASTM D5199 |
Tensile Strength | ≥18 MPa | ≥12 MPa | ISO 527 |
Elongation at Break | ≥600% | ≥400% | ISO 527 |
Water Vapor Transmission | <0.1 g/m²/day | <0.05 g/m²/day | ASTM E96 |
Temperature Resistance | -40°C to 60°C | -45°C to 80°C | ASTM D883 |
UV Stability | ≥10 years outdoor use | ≥15 years outdoor use | ASTM G154 |
Fish Safety Certification | FDA-compliant | NSF/ANSI 61 certified | FDA 21 CFR 177.1520 |
3. Benefits for Fish & Pond Owners
(2) Defense Against Contaminants
The liner acts as a barrier between pond water and surrounding soil, blocking harmful runoff, pesticides, or heavy metals from seeping in. This is especially vital for organic aquaculture, where water purity directly impacts fish health and marketability.
Resistant to punctures from fish activity, rocks, or pond tools, these liners withstand the daily hustle of aquatic life. Even with frequent fish feeding, plant growth, or netting, they maintain integrity – eliminating costly leaks that can drain ponds overnight.
By preventing soil interaction, the liner helps stabilize water pH, a key factor in fish health. Fluctuating pH levels (common in unlined earthen ponds) cause fish stress, weakened immune systems, and reduced reproduction. The liner’s neutral material keeps pH balanced, supporting a thriving food chain from algae to fish.

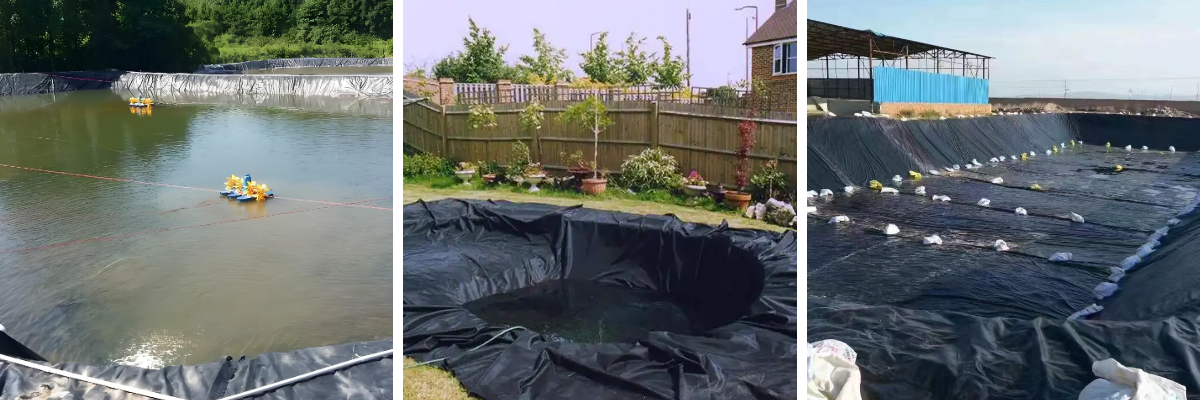

4. Ideal Applications
(1) Ornamental Ponds
Perfect for backyard koi or goldfish ponds, where aesthetics and fish health go hand in hand. The liner’s transparency (in lighter grades) enhances water clarity, showcasing vibrant fish and aquatic plants.
(2) Commercial Aquaculture
Essential for trout, catfish, or tilapia farms, where water quality and retention directly impact growth rates and profitability. The liner’s durability handles high fish densities and frequent harvesting.
(3) Wildlife Ponds
Creates safe habitats for native fish, frogs, and aquatic insects by maintaining stable water levels and preventing contamination from surrounding land.
(4) Water Gardens
Supports balanced ecosystems with fish, plants, and beneficial bacteria, ensuring harmony between aquatic life and ornamental features like fountains or waterfalls.

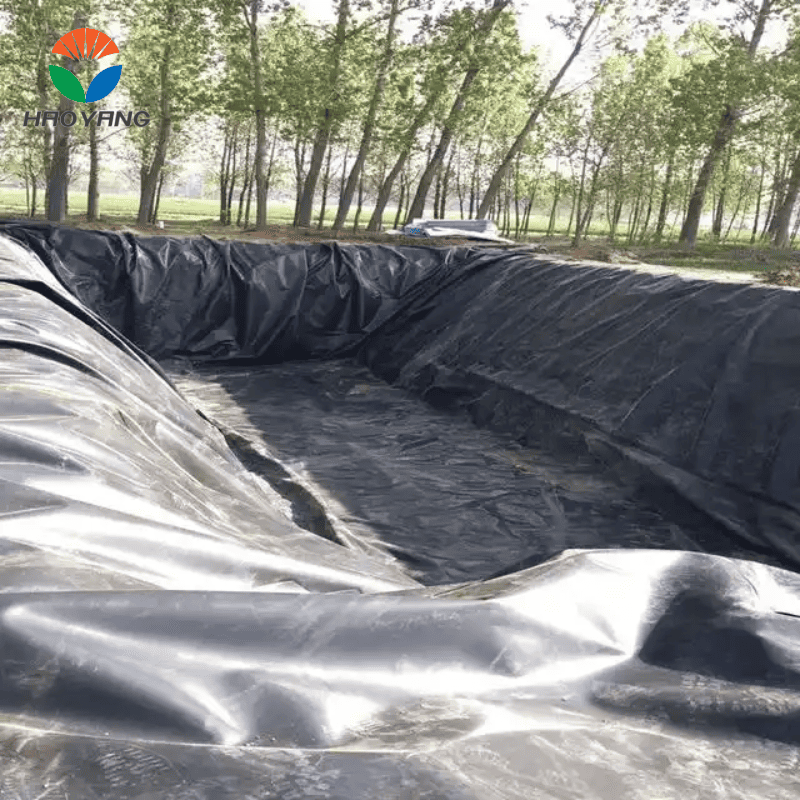

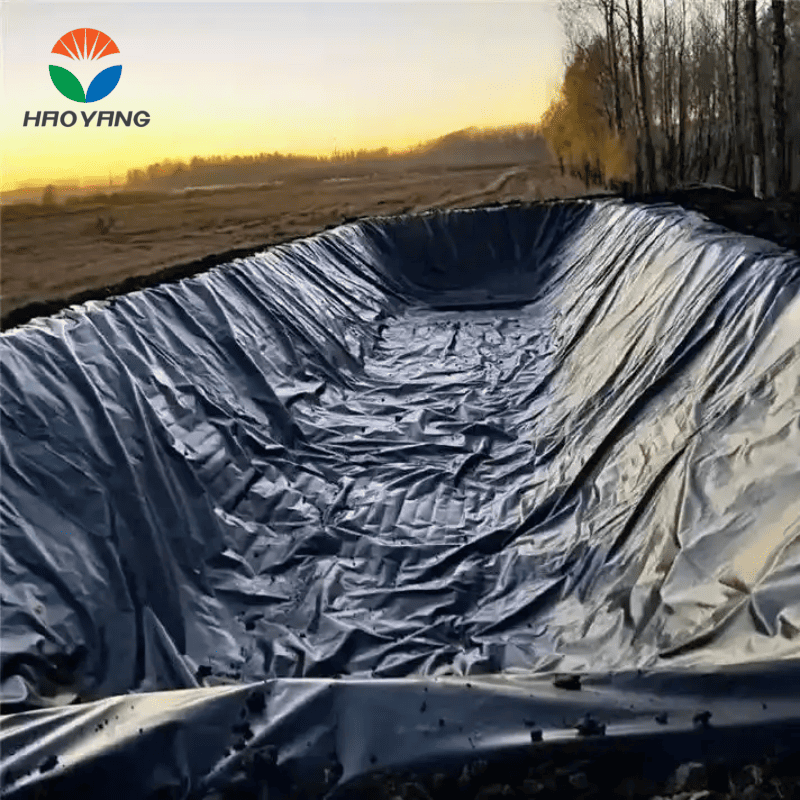

5. Installation & Care Guidelines
(1) Pre-Installation Prep
Clear the pond site of rocks, roots, and sharp debris to prevent punctures.
Lay a geotextile underlay (optional but recommended) to add extra protection against abrasion.
Level the base to avoid water pooling in uneven areas, which can stress fish.
(2) Liner Placement
Unroll the liner on a calm day to avoid wind damage.
Allow 30cm – 50cm of overhang around the pond edges to secure with rocks or edging.
Smooth out wrinkles to prevent water pockets, which can trap debris and harm fish.
(3) Long-Term Maintenance
Inspect yearly for small tears (repair with liner patch kits).
Avoid using petroleum-based cleaners; opt for fish-safe pond cleaners instead.
Trim overhanging plants to prevent root penetration.
Geomembrane Fish Pond Liners aren't just about containing water – they're about creating ecosystems where fish thrive. Backed by decades of aquaculture research, these liners blend safety, durability, and functionality to turn any pond into a healthy, vibrant habitat.
Contact our team to customize a liner size for your project, from small backyard ponds to large commercial facilities.
