200g 0.5mm 200g Composite Geomembrane

1. Triple - Layered Sealing: 200g geotextile layers sandwich a 0.5mm HDPE core, forming a tight barrier against liquid and gas leakage, suitable for waste and water projects.

2. High - Strength Composite: Combines geotextile flexibility with HDPE rigidity, enhancing tensile and puncture resistance for tough conditions.

3. Extended Durability: Resists UV, chemicals, and harsh weather. Multi - layer design ensures long service life and cost savings.

4. Easy & Economical: Lightweight for simple handling and fast welding. Low maintenance and long lifespan cut overall costs.

Contact Now E-Mail Telephone WhatsApp

Product Details

200g/0.5mm/200g Composite Geomembrane

Haoyang Environmental Co., Ltd. proudly presents the 200g/0.5mm/200g Composite Geomembrane, a cutting - edge solution designed to meet the diverse needs of environmental protection, water management, and construction projects. Engineered with precision and advanced technology, this composite geomembrane offers unparalleled performance and reliability.

1. Product Structure & Core Features

The 200g/0.5mm/200g Composite Geomembrane features a triple - layer structure:

Outer Geotextile Layers: 200g nonwoven geotextiles on both sides enhance friction, protect the middle layer, and improve soil - membrane interaction.

HDPE Core Layer: A 0.5mm high - density polyethylene (HDPE) layer serves as the primary barrier, providing excellent impermeability against liquids and gases.

2. Product Specifications & Performance

Property	Specification	Testing Standard
Total Thickness	0.9 - 1.1mm	ASTM D5199
Geotextile Weight (Single Layer)	200g/m²	ASTM D5261
HDPE Core Thickness	0.5mm ± 0.03mm	ASTM D5199
Tensile Strength (MD)	≥18kN/m	ISO 527 - 3
Tensile Strength (TD)	≥16kN/m	ISO 527 - 3
Elongation at Break (MD)	≥35%	ISO 527 - 3
Elongation at Break (TD)	≥40%	ISO 527 - 3
CBR Puncture Strength	≥2.0kN	ASTM D6241
Tear Strength (Graves Method, MD)	≥0.5kN	ASTM D4833
Tear Strength (Graves Method, TD)	≥0.4kN	ASTM D4833
Permeation Coefficient	≤1×10⁻¹³ cm/s	ASTM D5084
Chemical Resistance	Excellent resistance to acids, alkalis, and organic solvents	ASTM D543
UV Resistance	Retains ≥90% of tensile strength after 1000h UV exposure	ASTM G154
Low Temperature Resistance	Remains flexible at - 70℃	ASTM D746
Heat Resistance	Stable performance up to 110℃	ASTM D648
Weld Strength	≥85% of base material strength	ASTM D4433

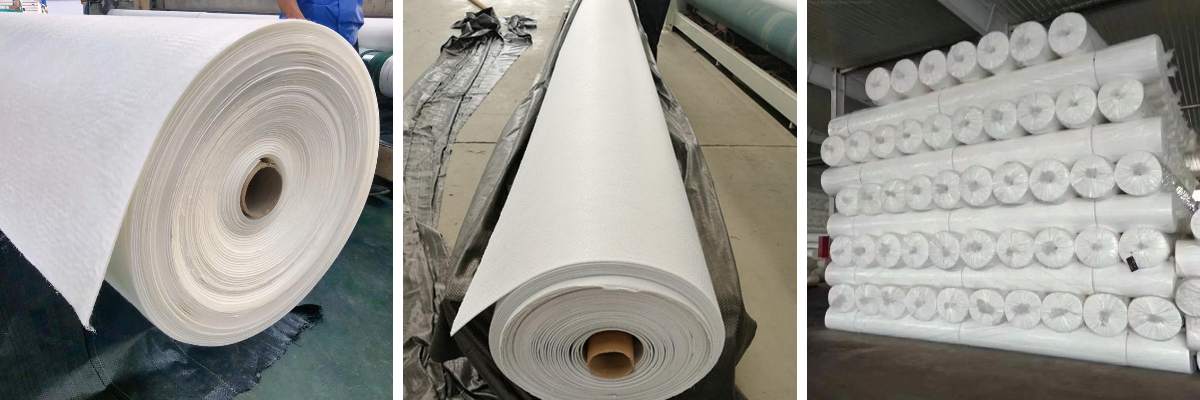

200g/0.5mm/200g Composite Geomembrane.jpg

3. Key Advantages

(1) Superior Impermeability

The 0.5mm HDPE core, flanked by geotextile layers, creates an ultra - tight seal. With a permeation coefficient ≤1×10⁻¹³ cm/s, it effectively blocks liquid and gas penetration, making it ideal for applications like landfills, reservoirs, and wastewater treatment ponds.

(2) Enhanced Strength & Durability

The composite structure combines the tensile strength of geotextiles and the rigidity of HDPE. It resists punctures, tears, and deformation under heavy loads, ensuring long - term performance even in harsh environments.

(3) Excellent Chemical & Weather Resistance

The HDPE core offers strong resistance to acids, alkalis, and organic solvents. Additionally, it withstands UV exposure, extreme temperatures, and weathering, ensuring durability over time.

(4) Cost - Effective & Installation - Friendly

Lightweight yet robust, this geomembrane simplifies handling and installation. Its compatibility with hot - air welding technology enables seamless connections, reducing installation time and labor costs. The long lifespan and low maintenance requirements further contribute to overall cost savings.

4. Applications

(1) Environmental Protection:

In landfills, the 200g/0.5mm/200g Composite Geomembrane acts as a crucial barrier, preventing leachate from seeping into the soil and groundwater. For instance, in large - scale landfill projects, it helps contain harmful substances, protecting the surrounding ecosystem.
During contaminated soil remediation, it can be used to isolate polluted areas, stopping the spread of contaminants and facilitating effective treatment.

(2) Water Engineering:

In reservoir construction, the geomembrane provides reliable waterproofing, ensuring water storage integrity. It also reduces water seepage losses, optimizing water resource utilization.
For fish ponds, it helps maintain water quality by preventing the intrusion of soil particles and contaminants, creating a healthy breeding environment for aquatic life.

(3) Construction:

In basement waterproofing, the composite geomembrane effectively blocks moisture, protecting building structures from water damage. It has been successfully applied in many high - rise buildings and underground facilities.
For tunnel lining, it offers both waterproofing and structural support, enhancing the durability and safety of the tunnel. Additionally, in the construction of artificial lakes for urban landscaping, it helps create beautiful water features while ensuring long - term water retention.

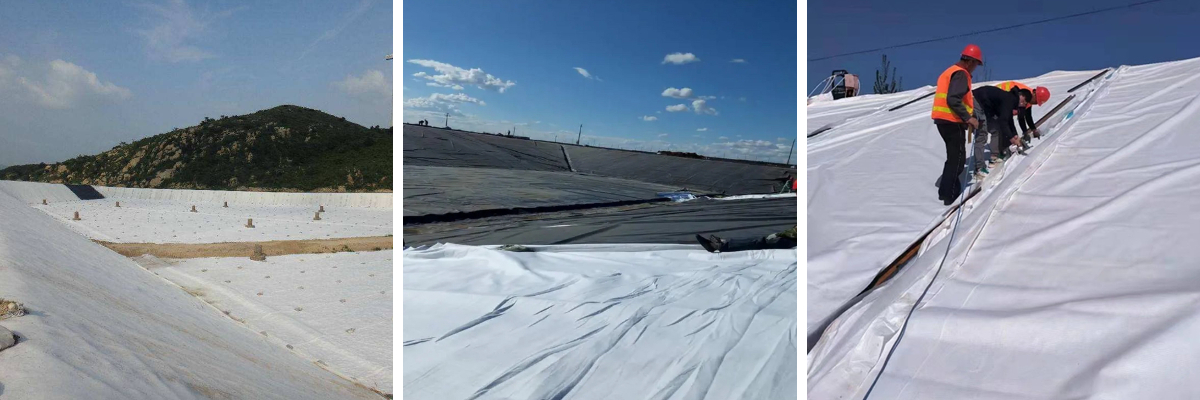

200g/0.5mm/200g Composite Geomembrane.jpg

5. Why Choose Haoyang's Composite Geomembrane?

Manufacturing Excellence: Haoyang utilizes state - of - the - art production lines and adheres to strict quality control processes, certified by ISO 9001 and ISO 14001.
Customization Options: Tailor - made solutions available in various sizes, colors, and additional properties to fit specific project requirements.
Global Support: A dedicated team provides technical guidance, installation support, and after - sales service worldwide.

For reliable, high - performance 200g/0.5mm/200g Composite Geomembrane solutions, trust Haoyang Environmental Co., Ltd. Contact us today to discuss your project needs and get a quote!
