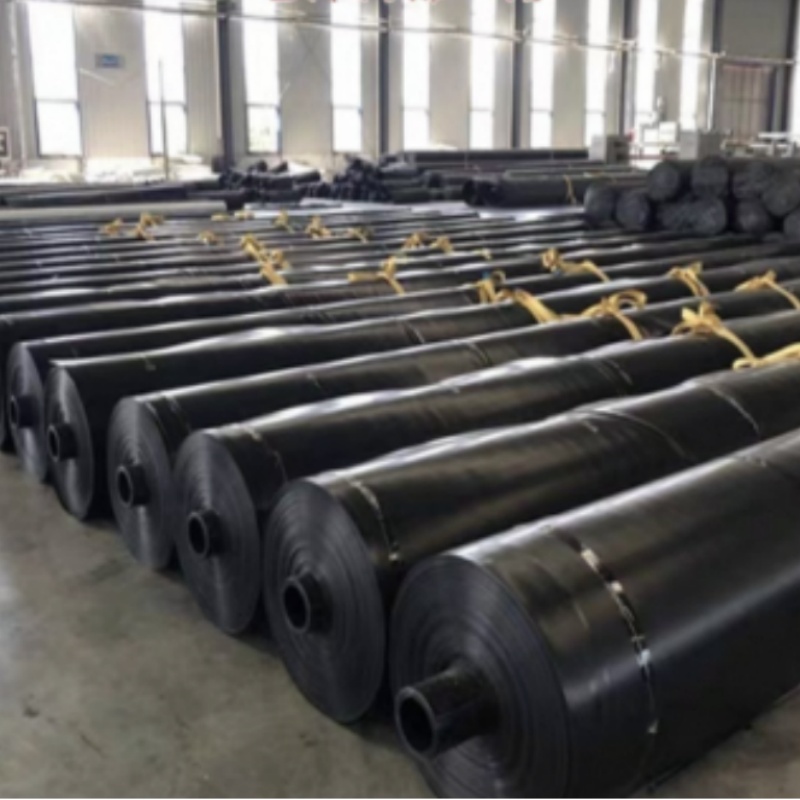

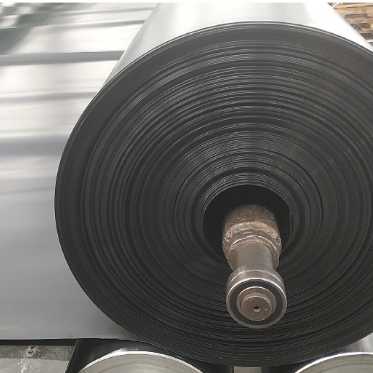

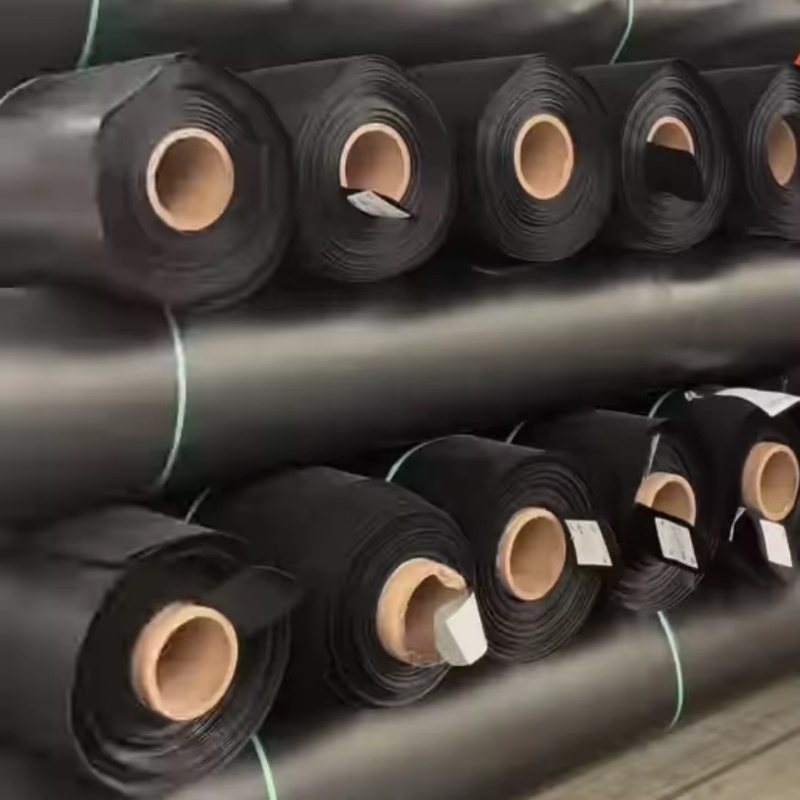

39mil HDPE Pond Liner

     39mil HDPE Pond Liner made from high-quality high-density polyethylene, incorporates carbon black, antioxidants, etc. It has excellent waterproof and anti-seepage properties, effectively maintaining stable water levels. It has strong anti-puncture and tear resistance, capable of withstanding sharp objects and external forces pulling. It has excellent chemical stability and is resistant to acid and alkali corrosion. It can be widely used in fish ponds, landscape lakes, reservoirs, etc., to prevent water leakage and pollution.

Product parameters

Types of ponds that the 1mm HDPE Pond Liner is suitable for

1. Landscape viewing pond

Application scenarios: Park landscape lake, courtyard viewing pond, garden water feature, etc.

Advantages: High-density polyethylene material is environmentally friendly and non-toxic, does not pollute the water body, has strong UV resistance, is not prone to aging when exposed to the outdoors for a long time, can keep the water body clear, and maintain the landscape effect.

2. Aquaculture pond

Application scenarios: Fish ponds, shrimp ponds, crab ponds, etc. for aquaculture areas.

Advantages: Excellent puncture and tear resistance, can withstand the activities of fish and shrimp, fishing operations, or scratches from the bottom debris; strong chemical stability, resistant to erosion by salt substances, disinfectants, etc. in the aquaculture water, ensuring a stable breeding environment.

3. Agricultural irrigation pond / water storage pond

Application scenarios: Farmland irrigation water storage pond, rainwater collection pond, etc.

Advantages: Highly efficient waterproof and anti-seepage, reduces water loss and waste, improves water resource utilization rate; resistant to acid and alkali corrosion, suitable for agricultural environments that may come into contact with fertilizers, pesticides, etc., prolongs the lifespan of the facilities.

4. Ecological pond (such as wetlands, biological ponds)

Application scenarios: Artificial wetlands, ecological filtration ponds, symbiotic ponds with animals and plants, etc.

Advantages: Flexible material that can adapt to irregular pond shapes, flexible construction; anti-aging properties ensure long-term use, while not affecting the interaction between the water body and the surrounding ecology, suitable for long-term stable ecological projects.

5. Temporary or seasonal ponds

Application scenarios: Temporary water storage ponds, seasonal landscape ponds, etc.

Advantages: Installation is convenient, can be quickly laid; 1mm thickness balances economy and practicality, can meet short-term waterproof requirements, is easy to dismantle and recycle, reduces costs. Notes:

Pool shape adaptation: Suitable for regular or irregular pool shapes. Especially for ponds with sharp objects like stones or tree roots on the bottom, it is necessary to clean or lay a cushion layer in advance to avoid puncturing the liner.

Load requirements: If the pond needs to withstand high water pressure (such as deep water ponds), it is recommended to combine with design verification to determine the thickness, but 1mm is usually suitable for most conventional ponds (depth ≤ 3 meters).

Cautionary Notes for Use

I. Pre-construction Preparation

Substrate Preparation

Thoroughly clean the bottom of the pool and the surrounding area of debris, remove stones, tree roots, sharp protrusions, etc., to avoid puncturing the liner.

Level and compact the substrate. If it is sandy or loose soil, a 10-15cm thick layer of fine sand or geotextile can be laid as a buffer layer. Environmental temperature

Avoid construction at extremely low temperatures (<5℃) or high temperatures (>35℃). Low temperatures may cause the materials to harden and become brittle, while high temperatures may accelerate the softening and deformation of the materials.

II. Laying and Installation

Laying direction

Try to lay along the length of the pool to reduce transverse joints; if splicing is necessary, the overlap width should be ≥15cm. Use hot-melt welding or special adhesives to ensure the joints are firm and leak-free.

Reserve expansion allowance

Consider the thermal expansion and contraction characteristics of the materials. When laying, reserve 10-20cm at the top of the pool wall and fix it with strips or concrete to avoid water level changes pulling the liner.

Pipe handling

If there are inlet and outlet pipes in the pool body, use special accessories (such as saddle joints) at the opening of the liner to seal, ensuring a tight interface and preventing water from seeping into the base.

III. Use and Maintenance

Avoid sharp contact

Do not use sharp tools (such as hoes, shovels) on the liner surface. The fishpond should avoid excessive fish and shrimp density, which may cause the pool bottom to be too thin and hard objects to protrude.

Control water level and load

The conventional 1mm thickness is suitable for ponds with a water depth of ≤3 meters. For deeper ponds, assess the water pressure risk; avoid overloading and stacking heavy objects (such as stones, equipment) directly on the liner.

Regular inspection

Inspect at least once a year, focusing on joints, pipe interfaces, and wear-prone areas. Repair any damages with patches of the same material (the repair area should be larger than the damaged area by more than 5cm).

Chemical substance protection

Avoid contact with strong corrosive solvents (such as concentrated sulfuric acid, concentrated alkali). When using disinfectants in aquaculture, control the concentration to avoid long-term high-dose direct spraying on the liner surface.

IV. Winter Protection and Extreme Weather

Winter protection: Before the pond in northern regions freezes, lower the water level below the liner or take ice-breaking measures to prevent ice expansion from squeezing the liner and causing cracking.

Wind resistance and sun protection: For open-air ponds, ensure the liner edge is firmly fixed to prevent strong winds from lifting it. For long-exposed areas, cover with floating plants or shading nets to delay UV aging.

V. Environmental Protection and Recycling

Avoid burning waste materials during construction. HDPE materials can be recycled. The retired liner should be handed over to professional institutions for processing to reduce environmental pollution.

Why choose Haoyang Environmental？

1.High-quality materials and advanced technology: Haoyang Environment produces 1mm HDPE Pond Liner, using high-quality polyethylene virgin resin and adding carbon black, antioxidants, etc. as auxiliary materials. It employs the internationally advanced three-layer co-extrusion technology to ensure excellent product performance. The liner produced has a tightly structured molecular structure, excellent waterproof and anti-seepage performance, and can effectively prevent water leakage, providing a reliable guarantee for waterproofing various ponds.

2.Outstanding physical properties: The 1mm HDPE Pond Liner produced by Haoyang Environment has outstanding puncture and tear resistance. It has high tensile strength, with a breaking tensile strength of up to 28 MPa and a breaking elongation rate of 700%, capable of withstanding sharp objects and external forces pulling. In complex pond environments, such as when there are stones, tree roots, etc. at the bottom, it is not prone to damage, greatly extending the product's service life.

3.Good chemical stability: This product has excellent chemical stability, resistant to acid and alkali corrosion, and can withstand the erosion of more than 80 kinds of strong acid and strong alkali chemical media. Whether it is used in fishponds for dealing with disinfectants, salts in water bodies, or agricultural irrigation ponds in contact with fertilizers, pesticides, etc., it can function stably and not be damaged by chemical substances.

4.Environmental protection and cost-effectiveness advantages: The 1mm HDPE Pond Liner produced by Haoyang Environment uses environmentally friendly materials, and the anti-seepage process is a simple physical change, without generating harmful substances. At the same time, the production process is scientific and efficient, reducing costs. Compared with traditional waterproof materials, the engineering using this product can save costs by about 30%-50%, combining environmental protection with high cost-effectiveness.
