20mil HDPE Geomembrane

20mil HDPE Geomembrane

In recent years, 20mil HDPE geomembrane has emerged as a practical and efficient solution for lining and containment systems in diverse industries. With a thickness of approximately 0.5 mm, this material combines chemical stability, low permeability, and manageable weight. Though thinner than other grades, 20mil geomembrane offers dependable protection in applications that require moderate mechanical strength but still demand environmental compliance and leakage prevention.

What Is a 20mil HDPE Geomembrane?

A 20mil geomembrane is manufactured from high-density polyethylene (HDPE) resin, known for its toughness and resistance to environmental stress. It is produced through advanced extrusion techniques to achieve a uniform thickness and surface quality. Despite being thinner than common industrial liners (such as 40mil or 60mil), it is widely used in low-load scenarios where flexibility, ease of deployment, and chemical resistance are critical.

Core Benefits

1. Lightweight Design for Easy Handling

Compared to thicker membranes, the 20mil HDPE liner is noticeably lighter, making it ideal for projects where quick installation and portability are essential. This characteristic simplifies transportation, onsite movement, and manual positioning, reducing labor time and equipment dependency.

2. Excellent Cost-Efficiency

In situations where high structural strength is not a primary requirement, the 20mil option provides significant savings. Its lower material cost, along with reduced logistics and deployment expenses, makes it attractive for budget-conscious applications such as temporary ponds, agricultural canals, or secondary containment systems.

3. Reliable Chemical Protection

Even at a thinner gauge, 20mil HDPE maintains strong resistance to a wide array of chemicals—including fertilizers, mild acids, saline water, and organic waste. This makes it suitable for agricultural irrigation systems, fish ponds, and lined channels where it may be exposed to reactive substances.

4. Low Water and Gas Permeability

The product acts as a strong impermeable barrier, effectively blocking the movement of liquids and gases. This makes it an important component in protecting underlying soil and groundwater from contamination.

5. UV-Stabilized for Outdoor Use

Though it is recommended primarily for projects with limited direct sunlight exposure, the 20mil HDPE geomembrane contains carbon black and UV inhibitors, allowing short- to medium-term exposure without significant performance loss.

6. Strong Seam Integrity

Thanks to its thermoplastic properties, 20mil HDPE can be securely welded using hot wedge or extrusion welding methods. The resulting seams are durable and consistent, which is vital for maintaining liner continuity and preventing leakage.

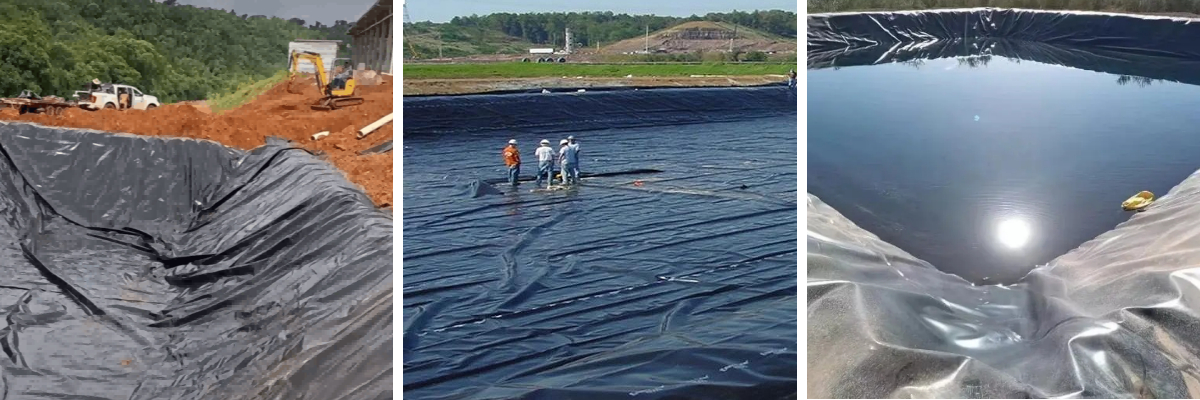

Common Applications of 20mil HDPE Geomembrane

The relatively thin profile of this geomembrane makes it most suitable for specific use cases where extreme mechanical stress is not a concern but chemical containment or waterproofing is required.

1. Aquaculture and Fish Farming

Fish ponds, shrimp tanks, and hatchery basins benefit from 20mil HDPE liners by maintaining clean water conditions and separating soil from the aquatic environment. Its smooth surface also discourages algae growth and makes cleaning easier between cycles.

2. Agricultural Water Storage

Farmers often use this liner in water reservoirs and canal linings to reduce seepage loss and optimize irrigation systems. Its resistance to fertilizers and UV exposure enables safe use in outdoor environments.

3. Temporary Containment Basins

For emergency spill containment or short-term fluid storage during construction or repair works, 20mil HDPE provides an effective temporary barrier. It can be rapidly deployed and later removed or reused as needed.

4. Secondary Containment for Fuel or Chemical Storage

In accordance with environmental regulations, chemical storage areas often require a backup containment system. A 20mil liner installed below tanks or drums can serve as an affordable secondary containment measure, reducing environmental risk.

5. Decorative and Landscaping Ponds

Residential and commercial landscaping projects use 20mil liners for artificial ponds, fountains, and water gardens. Its lightweight form and ease of shaping make it well-suited for creative or custom water features.

Performance Specifications

Note: Values may vary depending on the manufacturer and testing standards used.

Installation Tips and Considerations

To ensure the 20mil HDPE geomembrane performs effectively over its intended service life, proper installation practices must be followed:

1.Surface Preparation: The subgrade must be clean, smooth, and free of sharp objects or debris. Geotextile layers can be added to improve protection where needed.

2.Seaming and Welding: The thin material responds well to thermal welding techniques. All seams should be tested (e.g., air pressure testing or vacuum box) to confirm integrity.

3.Anchoring and Protection: In exposed areas, the liner should be properly anchored to prevent wind uplift. Cover materials (soil, sand, gravel) may be used to shield the liner from UV and physical damage.

4.Storage and Handling: Roll storage should be done in dry, shaded environments, and the liner should be protected from excessive heat or mechanical stress before deployment.

Environmental Impact and Sustainability

HDPE geomembranes, including the 20mil variant, contribute positively to environmental stewardship. They:

1.Prevent pollutants from seeping into soil and water bodies

2.Enable safe storage and reuse of wastewater or agricultural runoff

3.Are recyclable and do not leach harmful chemicals when exposed to natural elements

Additionally, by minimizing leakage and contamination, they support sustainability efforts across farming, aquaculture, and civil engineering sectors.

The 20mil HDPE geomembrane is a reliable, cost-effective, and versatile liner that meets the needs of a wide range of industries. While it may not be suitable for heavy-duty containment or highly pressurized environments, it excels in lightweight, flexible, and chemical-resistant applications where environmental protection is still critical.

Its affordability, simple handling, and dependable performance make it an excellent choice for projects seeking efficiency without compromising safety or compliance. Whether used in fish farming, irrigation, landscaping, or secondary containment, 20mil HDPE geomembrane offers an ideal balance of function and value.
