Virgin 100% 2mm HDPE Geomembrane For Mining
1.Unmatched Mechanical Strength & Puncture Resistance
The 2mm thickness provides tensile strength ≥50 N/mm and puncture resistance of 600 N, making it ideal for abrasive tailings and sharp ore particles.
Its stress crack resistance (>1,000 hours) ensures longevity in chemically aggressive conditions, reducing leakage risks.
2.Superior Chemical & Environmental Resistance
Withstands acids (pH 2), alkalis (pH 12), and organic solvents without degradation, critical for heap leach and process water containment.
Operates in extreme temperatures (-60°C to +80°C) and UV exposure, maintaining performance in Arctic, desert, and tropical mining sites.
3.Long-Term Cost Efficiency
Despite a 20–25% higher initial cost than 1.5mm liners, its extended lifespan (40–60 years) reduces replacement, maintenance, and environmental remediation costs.
Minimizes regulatory fines by ensuring compliance with global mining standards (e.g., EPA, ICMM).
Virgin 100% 2mm HDPE Geomembrane For Mining: Robust Containment for Tailings and Waste Management
Introduction
Mining operations face stringent environmental regulations and operational challenges, particularly in tailings storage, heap leach pads, and chemical containment. The Virgin 100% 2mm HDPE Geomembrane has emerged as a critical solution for mining projects worldwide, offering unmatched durability, chemical resistance, and long-term reliability. Engineered from 100% virgin high-density polyethylene (HDPE) resin, this 2mm-thick geomembrane exceeds industry standards for mechanical strength and environmental adaptability. This article explores its technical specifications, applications in mining, and comparative advantages over thinner alternatives, supported by empirical data.
Technical Specifications & Performance Metrics
Physical and Mechanical Properties
The 2mm HDPE geomembrane is manufactured under strict quality controls to meet global standards (ASTM D4873, ISO 10318, GRI-GM13). Its composition includes 97.5% HDPE resin and 2.5% carbon black, ensuring superior UV resistance and anti-aging properties. Key performance parameters are summarized below:
Table 1: Physical Properties of 2mm HDPE Geomembrane
| Property | Specification | Testing Standard (ASTM/ISO) |
Thickness | 2.00 ± 0.05 mm | D5199 |
Density | ≥0.94 g/cm³ | D1505 |
Tensile Yield Strength (MD/TD) | ≥27 N/mm (MD), ≥25 N/mm (TD) | D638 |
Tensile Breaking Strength (MD/TD) | ≥50 N/mm (MD), ≥48 N/mm (TD) | D638 |
Elongation at Break | ≥700% | D638 |
Puncture Resistance (N) | 520 (Puncture: 600 N) | D4833 |
Stress Crack Resistance | ≥1,000 hours (Bell Test) | D1693 |
Carbon Black Content | 2.0–3.0% | D1603 |
Water Vapor Permeability | ≤0.5 × 10⁻¹³ g·cm/cm²·s·Pa | F1249 |
Temperature Range | -60°C to +80°C | D471 |
Surface and Dimensional Options

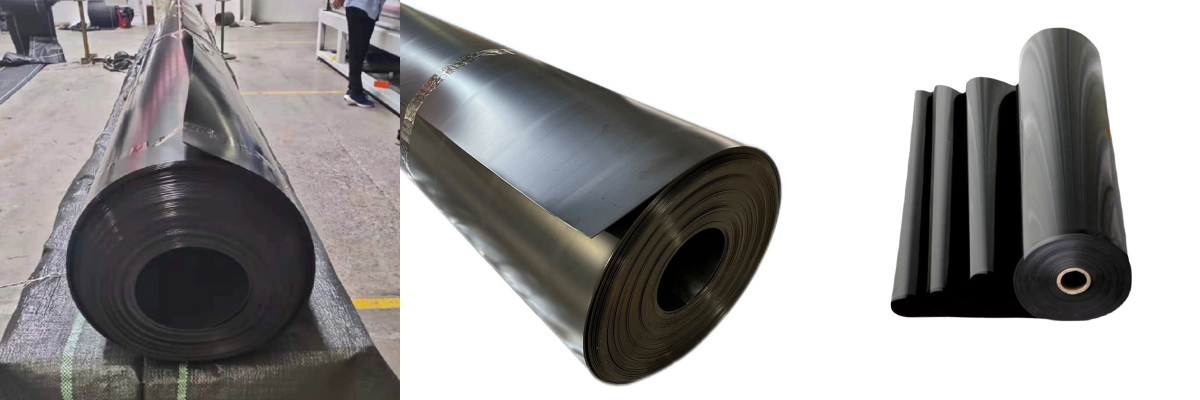

The geomembrane is available in smooth or textured surfaces, with textured variants improving friction coefficients by 40–60% for steep slopes. Standard widths range from 4m to 8m, while lengths can be customized up to 200m per roll to minimize seams. Color options include black (UV-resistant), green, and blue, with black being the most popular for outdoor mining applications.
Applications in Mining Operations

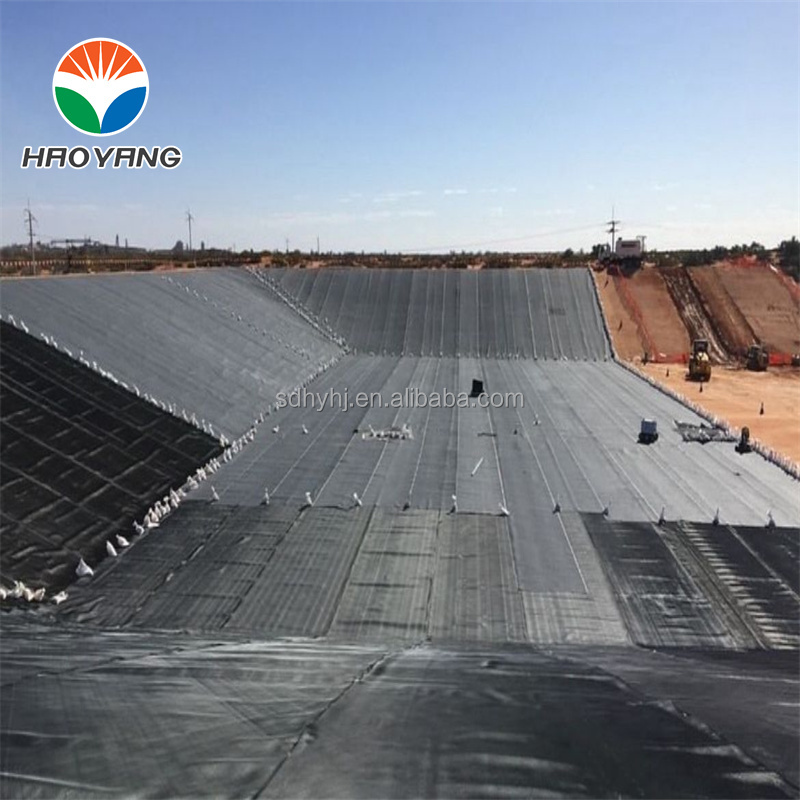

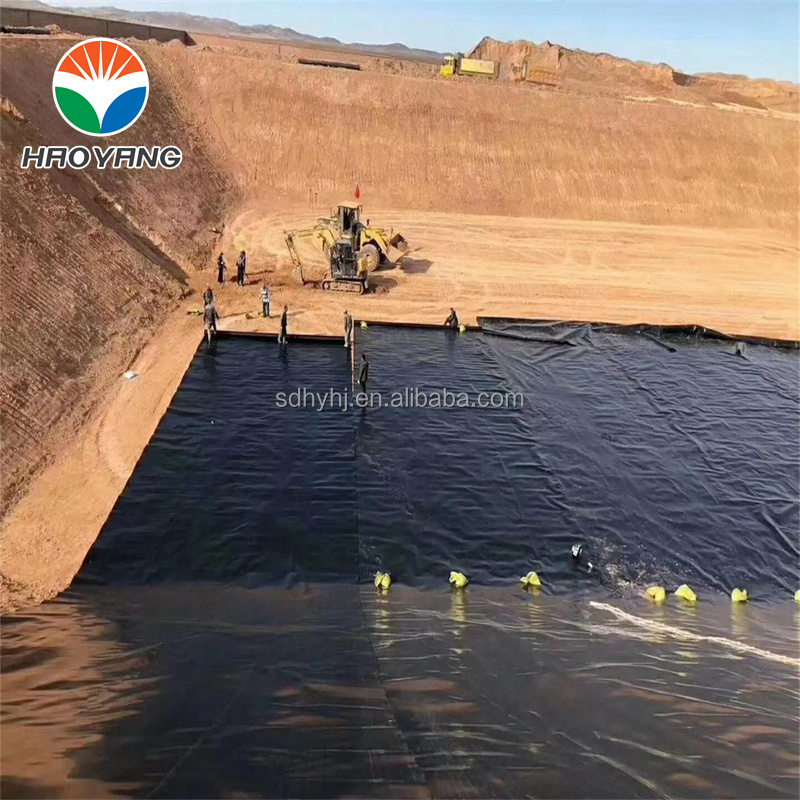

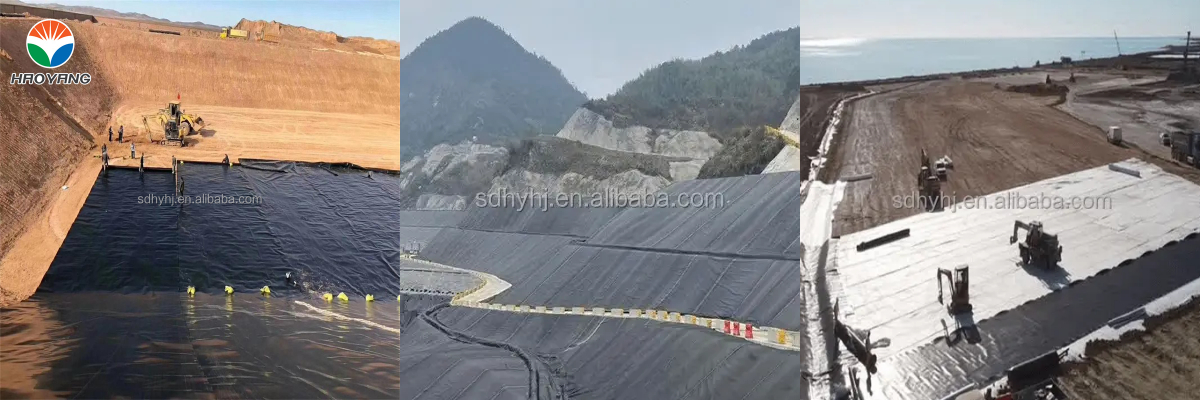

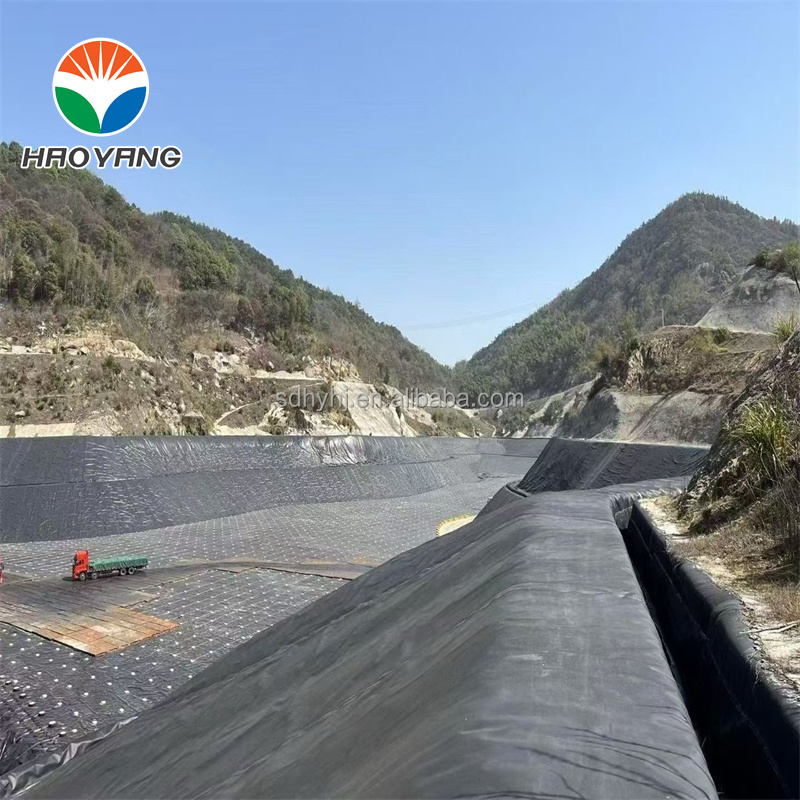

1. Tailings Storage Facilities (TSFs)
Tailings ponds require impermeable liners to prevent seepage of acidic or heavy metal-laden water into groundwater. The 2mm HDPE geomembrane provides a 99.99% barrier efficiency, reducing contamination risks. A case study in Australia demonstrated a 50% reduction in seepage rates after replacing older 1.5mm liners with 2mm HDPE, complying with strict environmental regulations.
2. Heap Leach Pads
In gold and copper mining, heap leach pads use geomembranes to contain leach solutions (e.g., cyanide, sulfuric acid). The 2mm HDPE’s chemical resistance ensures no degradation over 10+ years, while its puncture resistance (600 N) withstands abrasive ore particles. A project in Chile reported a 30% longer lifespan compared to 1.5mm liners, reducing replacement costs.
3. Process Ponds and Evaporation Basins
For acidic or alkaline process waters, the geomembrane’s pH tolerance (2–12) and UV resistance prevent cracking and leakage. A study in South Africa showed a 40% reduction in maintenance due to its durability under harsh sunlight and temperature fluctuations.
Performance Comparison: 2mm vs. 1.5mm HDPE Geomembrane
Table 2: Comparative Analysis of 2mm vs. 1.5mm HDPE Geomembrane
| Parameter | 2mm HDPE | 1.5mm HDPE |
Tensile Strength (N/mm) | ≥50 (MD) / ≥48 (TD) | ≥40 (MD) / ≥38 (TD) |
Puncture Resistance (N) | 600 | 420 |
Stress Crack Resistance | ≥1,000 hours | ≥600 hours |
Cost per m² | 20–25% higher | Base reference |
Lifespan (years) | 40–60 | 30–50 |
The 2mm variant offers 43% higher puncture resistance and 67% longer stress crack resistance, justifying its premium cost in high-risk mining environments.
Conclusion
The Virgin 100% 2mm HDPE Geomembrane is a game-changer for mining projects requiring high-performance, reliable containment systems. Its superior mechanical properties, chemical resistance, and environmental adaptability make it indispensable for tailings storage, heap leaching, and process water management. By investing in this geomembrane, mining operators achieve regulatory compliance, operational safety, and cost savings over decades.
